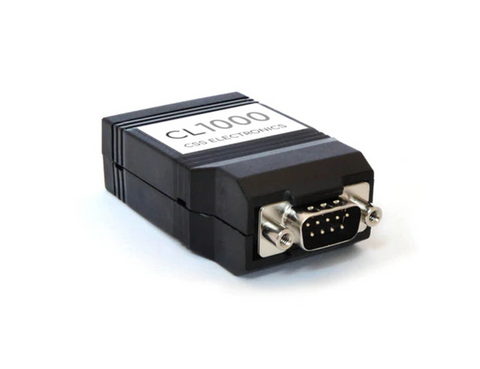

Name: CL1000 CAN Bus Logger & USB Interface
Brand: CSS Electronics
SKU: CT-CSS-0015
Price: 220.0 GBP
Availability: InStock

SKU: CT-CSS-0015

Select Size

8GB SD CARD

32GB SD CARD

Availability & delivery

✔ In stock

Limited stock available for prompt dispatch. For urgent requirements or larger quantities, please contact us to confirm availability.

🚚 Free UK delivery on orders over £250

Need help choosing?

If you’re unsure which product is right for your project, our in-house team is here to help.

Message us via the chat bubble (Mon–Fri, 9–5)
Or give us a call on +44 (0) 1234 247176

Specification

The CL1000 Can Logger Specification

GENERAL
Functionality	Data logger and real-time CAN interface (live send/receive)
LEDs	Logger status via three externally visible LEDs
Firmware	Supports free firmware updates for adding features
Software	Free CANvas software for configuration, conversion to ASC/TRC and DBC decoding [Windows]
	Free open source SavvyCAN software for streaming/analyzing CAN data [Windows/Linux]
	Free open source Wireshark software for streaming/analyzing CAN data [Windows]
	The .INI config / .TXT log files can also simply be opened in text editors or scripts [Windows/Linux]
Safety	CE, FCC, IC, RoHS certified
CAN BUS
Standard	Compliant with physical layer standard ISO 11898-2
Identifiers	Compliant with CAN specifications 2.0A (11-Bit ID) and 2.0B (29-Bit ID)
Bit Rate	Bit rates up to 1 Mbps (manually configured or automatically detected)
Bit-rate auto-detection	Yes
Protocol Support	Protocol independent (i.e. able to log CAN, J1939, CANopen, OBD2, ...)
Filters	Advanced message filtering on eight configurable channels
Silent Mode	Yes (does not affect CAN-bus transmission)
Fail-Safes	The device does not terminate the CAN-bus internally
DATA LOGGING
SD Card	Replaceable 8 GB SD card (optional 32 GB)
Real-Time Clock	No (see instead the CL2000 or CANedge)
Control Signal	Logging state (enabled/disabled) can be changed run-time using a CAN-bus control message
Heartbeat Signal	Supports heartbeat signal to periodically indicate logger status
Cyclic Logging	Supports cyclic logging mode (oldest log file is deleted when file system is full)
Down Sampling	CAN ID specific message down-sampling to reduce frequency of logged messages
Transmit	Transmit up to 20 customized CAN bus messages (e.g. for OBD2). Full real-time transmit control via USB
File System	Standard FAT file system
Frames/Second	The CL1000 can log/stream ~800-1000 frames/sec without loss. For higher busloads, see the CANedge
SUPPLY
Power via CAN connector	Power can be supplied from the DB9 CAN connector (log/stream) or via USB (data extraction)
Via CAN connector (DB9)	Power supplied by the CAN bus (+7.0V to +32V DC) using pin 9 (supply) and 3 (ground)
Protection	Reverse voltage protection on CAN-bus supply
	Transient voltage pulse protection on CAN-bus supply
Power via USB	Power supplied by USB (+5.0V DC)
Consumption	The logger's power consumption is approximately 1 W
MECHANICAL
Enclosure	Robust, small enclosure
Dimensions	66.7 x 42.7 x 23.5 mm (L x W x H)
Weight	45 grams
Connector	Standard D-sub 9 (DB9) connector (OBD2, J1939, "generic" adaptor optional)
USB	Standard mini USB connector for extracting data & streaming (cable not included)
Temperature	Operating temperature: -20degC to +65degC
IP Rating	IP Rating 40

The plug & play CL1000 CAN bus logger records CAN bus data to an 8 GB SD card. The CAN logger is 100% standalone (no PC required) and data is easily extracted via USB.

The CSS CL1000 is ideal for vehicle development and field testing (cars, heavy duty & more).

Further, the CL1000 doubles as a powerful reverse engineering tool with live-streaming via USB in SavvyCAN or Wireshark.

Specification

The CL1000 Can Logger Specification

GENERAL
Functionality	Data logger and real-time CAN interface (live send/receive)
LEDs	Logger status via three externally visible LEDs
Firmware	Supports free firmware updates for adding features
Software	Free CANvas software for configuration, conversion to ASC/TRC and DBC decoding [Windows]
	Free open source SavvyCAN software for streaming/analyzing CAN data [Windows/Linux]
	Free open source Wireshark software for streaming/analyzing CAN data [Windows]
	The .INI config / .TXT log files can also simply be opened in text editors or scripts [Windows/Linux]
Safety	CE, FCC, IC, RoHS certified
CAN BUS
Standard	Compliant with physical layer standard ISO 11898-2
Identifiers	Compliant with CAN specifications 2.0A (11-Bit ID) and 2.0B (29-Bit ID)
Bit Rate	Bit rates up to 1 Mbps (manually configured or automatically detected)
Bit-rate auto-detection	Yes
Protocol Support	Protocol independent (i.e. able to log CAN, J1939, CANopen, OBD2, ...)
Filters	Advanced message filtering on eight configurable channels
Silent Mode	Yes (does not affect CAN-bus transmission)
Fail-Safes	The device does not terminate the CAN-bus internally
DATA LOGGING
SD Card	Replaceable 8 GB SD card (optional 32 GB)
Real-Time Clock	No (see instead the CL2000 or CANedge)
Control Signal	Logging state (enabled/disabled) can be changed run-time using a CAN-bus control message
Heartbeat Signal	Supports heartbeat signal to periodically indicate logger status
Cyclic Logging	Supports cyclic logging mode (oldest log file is deleted when file system is full)
Down Sampling	CAN ID specific message down-sampling to reduce frequency of logged messages
Transmit	Transmit up to 20 customized CAN bus messages (e.g. for OBD2). Full real-time transmit control via USB
File System	Standard FAT file system
Frames/Second	The CL1000 can log/stream ~800-1000 frames/sec without loss. For higher busloads, see the CANedge
SUPPLY
Power via CAN connector	Power can be supplied from the DB9 CAN connector (log/stream) or via USB (data extraction)
Via CAN connector (DB9)	Power supplied by the CAN bus (+7.0V to +32V DC) using pin 9 (supply) and 3 (ground)
Protection	Reverse voltage protection on CAN-bus supply
	Transient voltage pulse protection on CAN-bus supply
Power via USB	Power supplied by USB (+5.0V DC)
Consumption	The logger's power consumption is approximately 1 W
MECHANICAL
Enclosure	Robust, small enclosure
Dimensions	66.7 x 42.7 x 23.5 mm (L x W x H)
Weight	45 grams
Connector	Standard D-sub 9 (DB9) connector (OBD2, J1939, "generic" adaptor optional)
USB	Standard mini USB connector for extracting data & streaming (cable not included)
Temperature	Operating temperature: -20degC to +65degC
IP Rating	IP Rating 40
