M870 7" Programmable Display
Regular price£1,608.20 Sale price Pricing excludes VAT.Shipping cost calculated in checkout.
Notice:
M870-04 Qt (Touchscreen) Variant - Now Available.
Please note that the lead time for this product is approximately 5 weeks. You are welcome to place your order and reserve your units as products will be sent on a first come first served basis as the items become available.
Have any questions?
If you’re unsure which product is right for your project, our engineering team is here to help.
Use the chat bubble below, or call us on +44 (0) 1234 247176 — we’ll guide you to the right choice for your application.
Please note: Some products have varied lead times. For exact delivery timeframes, please call in to speak with one of our team.
DSEM870 Specification
OVERALL SIZE
272 mm x 165 mm x 81 mm (10.8” x 6.3” x 3.15”)
WEIGHT
1.25kg
CUT-OUT
231 mm x 133 mm (9.09" x 5.24")
PRODUCT VARIANTS
M870-01 - CODESYS (Standard)
M870-02 - CODESYS (Touchscreen)
M870-03 - CODESYS (Standard with WebVisu)
M870-04 - Qt (Touchscreen)
DC SUPPLY
8 V DC to 36 V DC
CURRENT CONSUMPTION
OPERATING CURRENT
< 1000 mA at 12 V and 24 V without external loads
< 1500 mA at 12 V and 24 V with Htr.
DISPLAY
800 px x 480 px
24 bit colour
Optically bonded
INPUTS/OUTPUTS (total)
4 inputs / 4 outputs
INPUTS
Configurable,
Digital inputs (positive / negative)
Analogue inputs (Voltage 0 V to 5 V, 0 V to 10 V, 0 V to 32 V, current 4 mA to 20 mA, Ratiometric, Resistive, Frequency)
OUTPUTS
Configurable
Digital Output High-Sided/Low-Sided
VREF OUT
500 mA at 10 V / 5 V
INTERFACES
CAN 1.2
CAN Interfaces 2.0 A/B, ISO11898
50 kbits/s... 1 Mbit/s
CAN Open, SAE J1939 or Raw CAN
ETHERNET
10 Mbit/s / 100 Mbit/s, Duplex
USB
USB Host 2.0 (480 Mbit/s)
DIMENSIONS
272 mm x 165 mm x 81 mm (W x H x D)
10.8” x 6.3” x 3.15” ( W x H x D)
WEIGHT
1.25 kg
STORAGE TEMPERATURE RANGE
-40 ˚ C to +85 ˚ C
-40 ˚ F to +185 ˚ F
OPERATING TEMPERATURE RANGE
-30 ˚ C to +85 ˚ C
-22 ˚ F to +185 ˚ F
PROTECTION RATING
IP67/NEMA 6 (with mating connectors)
MOUNTING
8 x M5 bolts / RAM arm

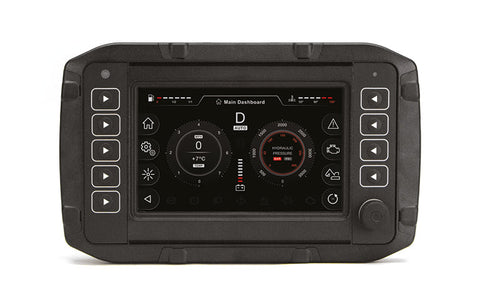

The DSEM870 is a 7" programmable display designed for use on vehicles and off highway machinery. Developed for use as a standalone product or with the DSEM640 programmable controller, the DSEM870 provides users with outstanding flexibility. The M870 is configured using CODESYS 3.5 (M870-01 / M870-02 / M870-03) or Qt (M870-04).
DSEM870 Specification
OVERALL SIZE
272 mm x 165 mm x 81 mm (10.8” x 6.3” x 3.15”)
WEIGHT
1.25kg
CUT-OUT
231 mm x 133 mm (9.09" x 5.24")
PRODUCT VARIANTS
M870-01 - CODESYS (Standard)
M870-02 - CODESYS (Touchscreen)
M870-03 - CODESYS (Standard with WebVisu)
M870-04 - Qt (Touchscreen)
DC SUPPLY
8 V DC to 36 V DC
CURRENT CONSUMPTION
OPERATING CURRENT
< 1000 mA at 12 V and 24 V without external loads
< 1500 mA at 12 V and 24 V with Htr.
DISPLAY
800 px x 480 px
24 bit colour
Optically bonded
INPUTS/OUTPUTS (total)
4 inputs / 4 outputs
INPUTS
Configurable,
Digital inputs (positive / negative)
Analogue inputs (Voltage 0 V to 5 V, 0 V to 10 V, 0 V to 32 V, current 4 mA to 20 mA, Ratiometric, Resistive, Frequency)
OUTPUTS
Configurable
Digital Output High-Sided/Low-Sided
VREF OUT
500 mA at 10 V / 5 V
INTERFACES
CAN 1.2
CAN Interfaces 2.0 A/B, ISO11898
50 kbits/s... 1 Mbit/s
CAN Open, SAE J1939 or Raw CAN
ETHERNET
10 Mbit/s / 100 Mbit/s, Duplex
USB
USB Host 2.0 (480 Mbit/s)
DIMENSIONS
272 mm x 165 mm x 81 mm (W x H x D)
10.8” x 6.3” x 3.15” ( W x H x D)
WEIGHT
1.25 kg
STORAGE TEMPERATURE RANGE
-40 ˚ C to +85 ˚ C
-40 ˚ F to +185 ˚ F
OPERATING TEMPERATURE RANGE
-30 ˚ C to +85 ˚ C
-22 ˚ F to +185 ˚ F
PROTECTION RATING
IP67/NEMA 6 (with mating connectors)
MOUNTING
8 x M5 bolts / RAM arm
