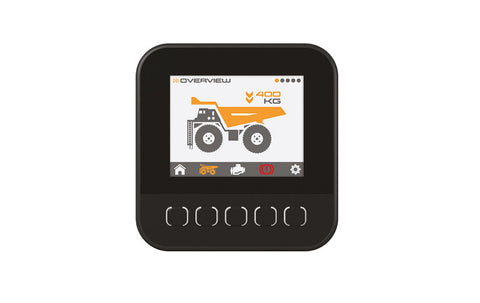

M835 3.5" Programmable Display
Regular price£401.50 Sale price Pricing excludes VAT.Shipping cost calculated in checkout.
Notice:
Please note that the lead time for this product is approximately 4 weeks. You are welcome to place your order and reserve your units as products will be sent on a first come first served basis.
Queries and Shipping
If you’re unsure which product is right for your project, our team is here to help.
Use the chat bubble below, or call us 9am-5pm on +44 (0) 1234 247176 for advice.
Shipping: Some products have varied lead times. For exact delivery estimates and shipping costs, add the item to your basket and proceed to checkout, or call our team for confirmation.
DSEM835 Specification
OVERALL SIZE
112.5 mm x 115 mm x 49 mm (4.438” x 4.53” x 1.93”)
WEIGHT
< 1 kg
CUT-OUT
80 mm diameter (3.15")
PRODUCT VARIANTS
M835-01 - M835 Programmable Display
DC SUPPLY
8 V DC to 32 V DC
CURRENT CONSUMPTION
OPERATING CURRENT
< 1000 mA at 12 V and 24 V without external loads
DISPLAY
320 px x 240 px
24 bit colour
Optically bonded
INPUTS/OUTPUTS (total)
4 inputs / 3 outputs
INPUTS
Configurable as: digital, current, voltage, resistance
0 V to 10 V, 0 mA to 10 mA, 0 - 3 kΩ
OUTPUTS
1 A continuous at supply voltage
VREF OUT
100 mA at 10 V / 5 V
INTERFACES
CAN 1
CAN Interfaces 2.0 A/B, ISO11898
50 kbits/s... 1 Mbit/s
SAE J1939 or Raw CAN
Configurable internal software 120 Ω resistor
DIMENSIONS
112.5 mm x 115 mm x 49 mm (W x H x D)
4.43” x 4.53” x 1.93” ( W x H x D)
WEIGHT
< 1 kg
STORAGE TEMPERATURE RANGE
-40 ˚ C to +85 ˚ C
-40 ˚ F to +185 ˚ F
OPERATING TEMPERATURE RANGE
-40 ˚ C to +85 ˚ C
-22 ˚ F to +185 ˚ F
PROTECTION RATING
IP67/NEMA 6 (with mating connectors)
MOUNTING
Panel Mount (80 mm / 3.15" diameter)

Key Features of the product include: Multi-Functional Inputs, Flexible Outputs, Heated Optically Bonded Display and Tier 4F Stage 5 Engine Support.
