PCAN-Router
Regular price£321.98 Sale price Pricing excludes VAT.Shipping cost calculated in checkout.
Control Technologies is the official and exclusive PEAK-System reseller in the UK.
Our engineering team has over 20 years of experience with CAN technologies and protocols - so you’re in safe hands.
- Fast UK shipping
- 100% genuine PEAK hardware with full warranty
- Direct access to our engineers for integration advice
View the official PEAK-System distributors list .
Have any questions?
If you’re unsure which product is right for your project, our engineering team is here to help.
Use the chat bubble below, or call us on +44 (0) 1234 247176 — we’ll guide you to the right choice for your application.
Please note: Some products have varied lead times. For exact delivery timeframes, please call in to speak with one of our team.

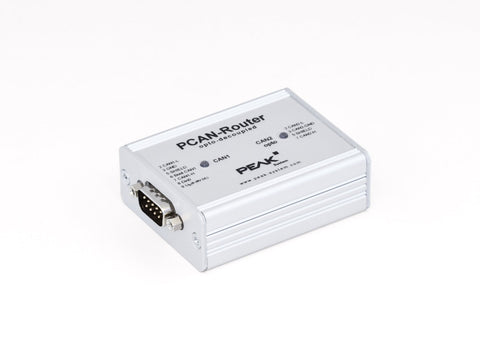

The PCAN-Router is a dual-channel CAN module whose NXP LPC21 series programmable microcontroller provides the option of using the CAN messages on both channels on a flexible basis. This gives a whole range of options for manipulation, evaluation, filtering, and routing of CAN messages.
Using the programming library and the GNU compiler for C and C++, a firmware is created and then transferred to the module via CAN. At delivery, the PCAN-Router is equipped with a demo firmware that forwards CAN messages 1:1 between both channels at 500 kbit/s. The corresponding source code is included as example in the scope of supply.

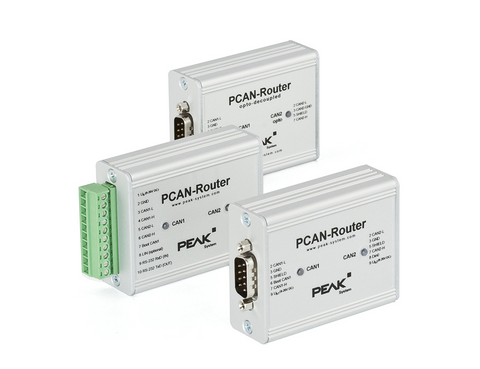

The module is installed in an aluminum profile casing, and is shipped in versions with two D-Sub connectors or a screw-terminal strip.
Requirements:
The transfer of the firmware via CAN requires a PEAK CAN interface.
Technical Specifications
- NXP LPC21 series microcontroller (16/32-bit ARM CPU)
- 32 kbyte EEPROM
- Two High-speed CAN channels (ISO 11898-2) with bit rates from 40 kbit/s up to 1 Mbit/s
- Complies with CAN specifications 2.0 A/B
- Galvanic isolation of the D-Sub connector CAN 2 (only applies to the opto-decoupled version)
- Status signaling with two 2-color LEDs
- Connections via two 9-pin D-Sub connectors or one 10-pole screw-terminal strip (Phoenix)
- Additional digital input (only applies to models with D-Sub connectors)
- Aluminum casing, optional with DIN rail fixing option available
- Voltage supply from 8 to 30 V
- Extended operating temperature range from -40 to 85 °C (-40 to 185 °F)
- New firmware can be loaded via CAN interface
Scope of Supply
- PCAN-Router in aluminum casing
- IPEH-002210-P: mating connector (Phoenix Contact MC 1,5/10-ST-3,81 - 1701458)
- Windows® development package with GCC ARM Embedded, flash program, and programming examples
- Manual in PDF format
