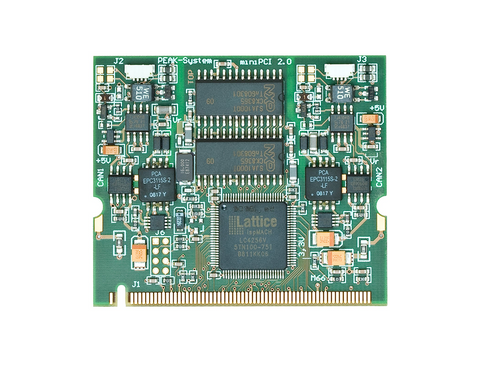

The PCAN-miniPCI card enables the connection of embedded PCs and laptops with Mini PCI slots to CAN networks.

The card is available as a single or dual-channel version. The opto-decoupled versions also guarantee galvanic isolation of up to 300 Volts between the PC and the CAN sides.

The package is also supplied with the CAN monitor PCAN-View for Windows and the programming interface PCAN-Basic.

Scope of Supply

  • PCAN-miniPCI card
  • Connection cable including D-Sub plug for each channel
  • Device drivers for Windows® 10, 8.1 and Linux (32/64-bit)
  • Device driver for Windows® CE 6.x (x86 and ARMv4 processor support)
  • CAN monitor PCAN-View for Windows® Details ...
  • Programming interface PCAN-Basic for developing applications with CAN connection Details ...
  • Programming interfaces for standardized protocols from the automotive sector
  • Manual in PDF format

Download User Manual

Specifications

  • CAN interface for the Mini PCI slot
  • 1 or 2 High-speed CAN channels (ISO 11898-2)
  • CAN bus connection via connection cable and D-Sub, 9-pin (in accordance with CiA® 303-1)
  • Bit rates from 40 kbit/s up to 1 Mbit/s
  • Compliant with CAN specifications 2.0A (11-bit ID) and 2.0B (29-bit ID)
  • NXP SJA1000 CAN controller, 16 MHz clock frequency
  • NXP TJA1040 CAN transceiver
  • 5-Volt supply to the CAN connection can be connected through a solder jumper, e.g. for external bus converter
  • Galvanic isolation on the CAN connection up to 300 V, separate for each CAN channel (only for IPEH-003046 and IPEH-003047)
  • Operating temperature range from 0 to 70 °C (32 to 158 °F)

Pin assignment D-Sub

Pin Pin assignment
1 Not connected / optional +5V
2 CAN-L
3 GND
4 Not connected
5 Not connected
6 GND
7 CAN-H
8 Not connected
9 Not connected



All development software packages may be downloaded directly from PEAK-system: PCAN-miniPCI Development Package
