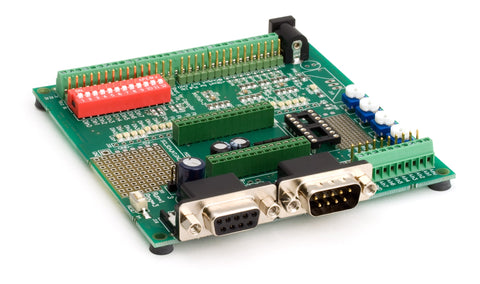

PCAN-MicroMod Evaluation Kit

CT-IPEH-002079

Regular price £320.00 Save Liquid error (product-template line 131): Computation results to '-Infinity'%
/
Shipping calculated at checkout.

Only 0 items in stock!
Please note that the following product is currently on a 2-3 week lead time.

Due to UK border logistics, some products may be experiencing slight delays. Find out more

The plug-in module PCAN-MicroMod represents a straightforward possibility to provide electronic circuits with I/O functionality and a CAN connection. Configuring is done with a Windows® program which sends the configuration data to the module via CAN. Several modules can be configured independently on a CAN bus.

With various PCAN-MicroMod motherboards, it can be used in device and plant engineering and in the motor vehicle industry. An optional evaluation board simplifies the enhancement and development of custom boards.

Requirements:


The configuration requires a PEAK CAN interface.





Technical Specifications

    • Open-collector output driver for digital outputs and CMOS PWM outputs
    • Pickoffs and screw terminals for inputs and outputs
    • Switches for status modification of the digital inputs
    • Protected digital inputs + LED
    • 4 potentiometers for analog inputs
    • Low-pass and resistive divider for voltages > 5 V
    • Serial interface for firmware updates
    • Optional Low-speed CAN transceiver
    • Operating temperature range from 0 to 85 °C (32 to 185 °F)
    • Dimensions: 100 x 100 mm
