FMB020
by Teltonika
Regular price£57.86 Sale price Pricing excludes VAT.Shipping cost calculated in checkout.
Notice:
Some of our products are on varied lead times, For confirmation on when you can expect your order to arrive, please call in and speak to one of our experts.
Our team are available from 9:00am - 5:00pm on +44(0) 1234 247 176 and will be happy to discuss any questions.

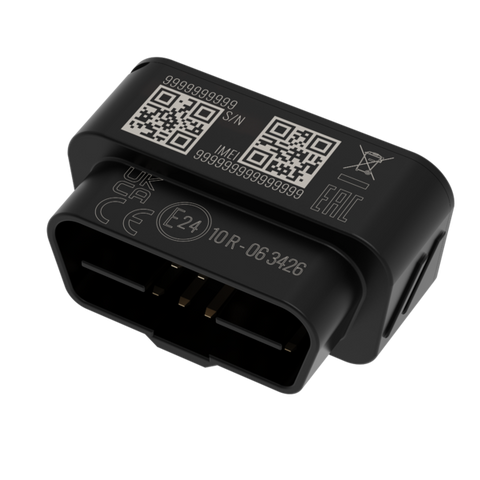

FMB020 is an ultra-small OBDII plug and track device with GNSS, GSM and Bluetooth connectivity for a true connected car application. It is a perfect tracker for a wide range of use cases – including fleet management of light commercial vehicles, driver log-book, insurance telematics (UBI), car rental & leasing and more.
FMB020 device supports crash detection functionality that allows the user to be notified when a car crash happens. By using the accelerometer data received during the crash, it is possible to visualize the angle and measure the force with which the vehicle was hit. This could prove to be useful in Insurance Telematics solutions. The device supports various Bluetooth Low energy sensors, beacons, hands-free headsets, firmware and configuration updates via Bluetooth.
FMB020 – the best choice for someone looking for a practical OBD solution.
| MODULE | |
| Name | Teltonika TM2500 |
| Technology | GSM/GPRS/GNSS/BLUETOOTH |
| GNSS | |
| GNSS | GPS, GLONASS, GALILEO, BEIDOU, SBAS, QZSS, DGPS, AGPS |
| Receiver | 33 channel |
| Tracking sensitivity | -165 dBM |
| Accuracy | < 2.5m CEP |
| Hot start |
< 1 s
|
| Warm start | < 25 s |
| Cold start | < 35 s |
| CELLULAR | |
| Technology | GSM |
| 2G bands | Quad-band 850 / 900 / 1800 / 1900 MHz |
| Data transfer | GPRS Multi-Slot Class 12(up to 240 kbps) |
| Data support | SMS (text/data) |
| POWER | |
| Supply voltage range | 10 - 30 V DC with overvoltage protection |
| Back-up battery | 3.7 V 45 mAh |
| Power consumption | At 12V < 5 mA (Ultra Deep Sleep) At 12V < 7 mA (Deep Sleep) At 12V < 7 mA (Online Sleep) At 12V < 8 mA (GPS Sleep) At 12V < 28 mA (nominal) |
| BLUETOOTH | |
| Specification | 4.0 + LE |
| Supported peripherals | Temperature and Humidity sensor, Headset, Inateck Barcode Scanner, Universal BLE sensors support |
| INTERFACE | |
| Connection | OBDII Socket |
| GNSS antenna | Internal High Gain |
| Cellular antenna | Internal High Gain |
| USB | 2.0 Micro-USB |
| LED indication | 2 status LED lights |
| SIM | Nano-SIM |
| Memory | 128MB internal flash memory |
| PHYSICAL SPECIFICATION | |
| Dimensions | 52.6 x 29.1 x 26 mm (L x W x H) |
| OPERATING ENVIRONMENT | |
| Operating temperature (without battery) | -40 °C to +85 °C |
| Storage temperature (without battery) | -40 °C to +85 °C |
| Operating humidity | 5% to 95% non-condensing |
| Ingress Protection Rating | IP41 |
| Battery charge temperature | +10 °C to +45 °C |
| Battery discharge temperature | -20 °C to +60 °C |
| Battery storage temperature | -20 °C to +45 °C for 1 month -20 °C to +35 °C for 6 months |
| FEATURES | |
| Sensors | Accelerometer |
| Scenarios | Green Driving, Over Speeding detection, Jamming detection, GNSS Fuel Counter, Excessive Idling detection, Unplug detection, Towing detection, Crash detection, Auto Geofence, Manual Geofence, Trip |
| Sleep modes | GPS Sleep, Online Deep Sleep, Deep Sleep, Ultra Deep Sleep |
| Configuration and firmware update | FOTA Web, FOTA, Teltonika Configurator (USB, Bluetooth), FMBT mobile application (Configuration) |
| SMS | Configuration, Events, Debug |
| GPRS commands | Configuration, Debug |
| Time Synchronization | GPS, NITZ, NTP |
| Fuel monitoring | GNSS Fuel counter |
| Ignition detection |
Accelerometer, External Power Voltage |
