Name: CANsub
Brand: CSS Electronics
SKU: CT-CSS-D025
Price: 415.0 GBP
Availability: InStock

SKU: CT-CSS-D025

Select Variant

CANsub.2: 2 x CAN Bus Interface (USB + Ethernet)

CANsub.4: 4 x CAN Bus Interface (USB + Ethernet)

Availability & delivery

✔ Available to order

Supplied to order from the manufacturer. Please contact us to confirm delivery lead time before placing your order.

🚚 Free UK delivery on orders over £250

Need help choosing?

If you’re unsure which product is right for your project, our in-house team is here to help.

Message us via the chat bubble (Mon–Fri, 9–5)
Or give us a call on +44 (0) 1234 247176

Downloads

Specification

GENERAL
Functionality	CAN-USB/Ethernet interface with 2 or 4 x CAN FD channels (depending on variant)
Firmware	Supports free firmware updates for adding features
Software	Free webCAN app (runs on device) – zero installation required Supports CAN frame transmission/reception, DBC decoding, signal plotting and device configuration Includes free SavvyCAN support and open-source Python API
Custom Apps / Integrations	Open REST API (OpenAPI documented) Open WebSocket API for real-time CAN streaming JS/TS libraries for custom CANsub web applications
Safety	CE, FCC, IC and RoHS certified
Warranty	1 year
Origin	Denmark
INTERFACES & SECURITY
Interfaces	USB-C and Ethernet
USB	Configuration, firmware updates and CAN data streaming
Ethernet	Supports local and remote deployments, including use with WiFi/LTE routers
Security	TLS 1.2 encrypted communication
Discovery	mDNS device discovery
CAN BUS
Channels	Available in 2-channel and 4-channel CAN FD variants
Isolation	Basic galvanic isolation
Standard	ISO 11898 compliant CAN and CAN FD (up to 5 Mbit/s)
Protocols	J1939, CANopen, NMEA 2000, OBD2, UDS, CCP/XCP and other CAN-based protocols
Identifiers	11-bit (CAN 2.0A) and 29-bit (CAN 2.0B)
Bit Rate	Automatic detection or manual configuration
Transceiver Protection	Short-circuit, bus-fault and undervoltage protection High-impedance passive behaviour when unpowered TXD dominant timeout protection
DATA STREAMING
Parallel CAN	Supports simultaneous streaming across all CAN channels
Timestamping	1 μs resolution
Frames per Second	20,000+ CAN frames per second
Silent Mode	Hardware-based configurable silent mode
Filters	Multiple standard and extended hardware ID filters per channel
Transmit	Custom CAN frame transmission and scheduled transmission jobs
CAN Error Frames	Supported
Remote Frames (RTR)	Supported
Unique Device ID	Globally unique device identifier
DISPLAY
Type	160 × 80 pixel colour TFT LCD
Boot State	Displays device URL/IP for connection and setup
Connected State	Displays CAN status, bit rates, bus load, frame count and errors
ELECTRICAL
Input Supply	+5 V DC via USB-C (PoE adapter optional)
Power Consumption	< 1 W
MECHANICAL
Dimensions	75 × 67 × 20 mm (excluding flanges)
Weight	90 g
Front Connector	2-channel version: 2 × DB9 connectors 4-channel version: 1 × DB25 connector (DB25-to-4×DB9 adapter available)
USB	USB-C
Ethernet	RJ45
Flanges	4 × M3 mounting holes
Operating Temperature	-25°C to +70°C
IP Rating	IP40
Mounting	Velcro strips or mounting kit

The CANsub series lets you stream CAN bus data in real-time via USB or Ethernet, combining professional-grade CAN FD performance with a built-in LCD display and zero software installation.

The free webCAN application is hosted directly on the CANsub. Simply enter the device URL in a browser to get started. This allows you to instantly send and receive CAN frames, decode DBC data and plot CAN signals from any connected PC, tablet or smartphone, even when working offline.

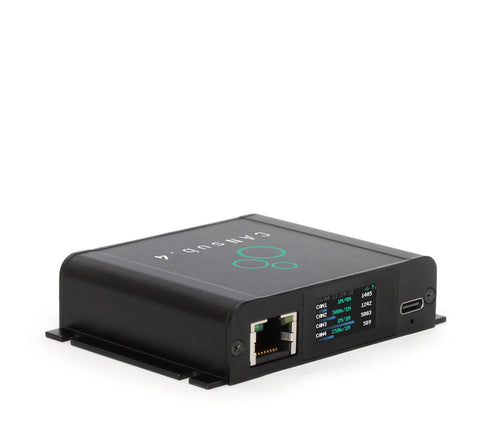

The integrated LCD display provides real-time device and CAN information, while USB and Ethernet connectivity enable flexible access to CAN data from laptops, tablets and smartphones.

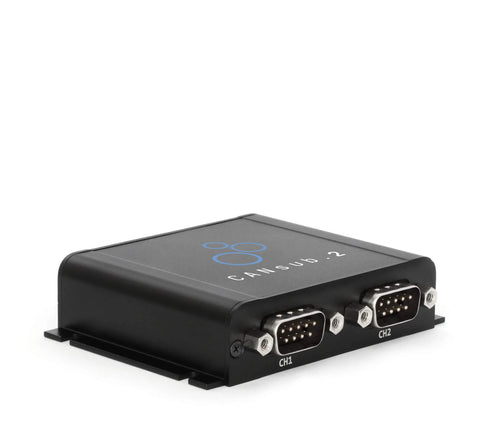

The CANsub series is available in two variants: the CANsub.2 with 2 x CAN FD channels via dual DB9 connectors, and the CANsub.4 with 4 x CAN FD channels via a DB25 connector.

For advanced applications, the CANsub provides an open REST/WebSocket API, making it easy to build custom software, dashboards and integrations, with plug-and-play support for tools such as Python and SavvyCAN.

Ideal for CAN bus diagnostics, OEM development, field service, automation, testing, monitoring and dashboard applications.

Specification

GENERAL
Functionality	CAN-USB/Ethernet interface with 2 or 4 x CAN FD channels (depending on variant)
Firmware	Supports free firmware updates for adding features
Software	Free webCAN app (runs on device) – zero installation required Supports CAN frame transmission/reception, DBC decoding, signal plotting and device configuration Includes free SavvyCAN support and open-source Python API
Custom Apps / Integrations	Open REST API (OpenAPI documented) Open WebSocket API for real-time CAN streaming JS/TS libraries for custom CANsub web applications
Safety	CE, FCC, IC and RoHS certified
Warranty	1 year
Origin	Denmark
INTERFACES & SECURITY
Interfaces	USB-C and Ethernet
USB	Configuration, firmware updates and CAN data streaming
Ethernet	Supports local and remote deployments, including use with WiFi/LTE routers
Security	TLS 1.2 encrypted communication
Discovery	mDNS device discovery
CAN BUS
Channels	Available in 2-channel and 4-channel CAN FD variants
Isolation	Basic galvanic isolation
Standard	ISO 11898 compliant CAN and CAN FD (up to 5 Mbit/s)
Protocols	J1939, CANopen, NMEA 2000, OBD2, UDS, CCP/XCP and other CAN-based protocols
Identifiers	11-bit (CAN 2.0A) and 29-bit (CAN 2.0B)
Bit Rate	Automatic detection or manual configuration
Transceiver Protection	Short-circuit, bus-fault and undervoltage protection High-impedance passive behaviour when unpowered TXD dominant timeout protection
DATA STREAMING
Parallel CAN	Supports simultaneous streaming across all CAN channels
Timestamping	1 μs resolution
Frames per Second	20,000+ CAN frames per second
Silent Mode	Hardware-based configurable silent mode
Filters	Multiple standard and extended hardware ID filters per channel
Transmit	Custom CAN frame transmission and scheduled transmission jobs
CAN Error Frames	Supported
Remote Frames (RTR)	Supported
Unique Device ID	Globally unique device identifier
DISPLAY
Type	160 × 80 pixel colour TFT LCD
Boot State	Displays device URL/IP for connection and setup
Connected State	Displays CAN status, bit rates, bus load, frame count and errors
ELECTRICAL
Input Supply	+5 V DC via USB-C (PoE adapter optional)
Power Consumption	< 1 W
MECHANICAL
Dimensions	75 × 67 × 20 mm (excluding flanges)
Weight	90 g
Front Connector	2-channel version: 2 × DB9 connectors 4-channel version: 1 × DB25 connector (DB25-to-4×DB9 adapter available)
USB	USB-C
Ethernet	RJ45
Flanges	4 × M3 mounting holes
Operating Temperature	-25°C to +70°C
IP Rating	IP40
Mounting	Velcro strips or mounting kit
