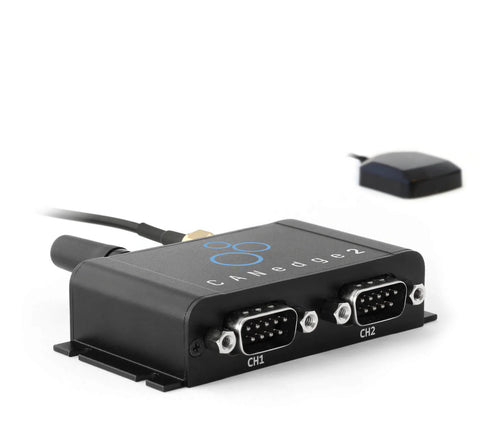

CANedge2: 2x CAN Bus Data Logger (SD + WiFi + GPS/IMU)
Regular price£696.00 Sale price Pricing excludes VAT.Shipping cost calculated in checkout.
Select Size
Availability & delivery
✔ Available to order
Supplied to order from the manufacturer. Please contact us to confirm delivery lead time before placing your order.
🚚 Free UK delivery on orders over £250
Need help choosing?
If you’re unsure which product is right for your project, our in-house team is here to help.
- Message us via the chat bubble (Mon–Fri, 9–5)
- Or give us a call on +44 (0) 1234 247176
General
| Functionality | Standalone CAN bus data logger with SD card, 2x CAN/LIN channels, WiFi and GNSS/IMU |
| Firmware | Supports free firmware updates for adding features |
| Configuration | Configuration files based on the popular open source JSON schema concept |
| Software | Free open source editor tool for easy device configuration, available offline and online |
| Software | Free open source CANcloud telematics platform for managing devices and data via your browser |
| Software | Multiple tools for mounting your S3 server as a local drive for easy access |
| Software | Free open source asammdf software and API for editing, DBC converting and plotting MF4 data |
| Software | Free open source MF4 converters for drag-and-drop conversion to CSV, ASC, TRC and more |
| Software | Free open source Python API for automated data processing, reporting and integrations |
| Software | Free open source telematics dashboards for visualising DBC-decoded data in your browser |
| Safety | CE-RED, FCC, IC, RoHS, ECE R10 automotive EMC, WPC ETA India, RCM Australia, ICASA South Africa |
| Safety | For Korea/Japan, a certified PB variant with internal WiFi antenna is available: KC, GITEKI |
| Warranty | 1-year warranty |
| Support | Free, fast and high-quality support |
| Origin | Denmark |
CAN Bus
| Channels | 2 x CAN channels including CAN FD support |
| Standard | ISO 11898 compliant with CAN up to 1 Mbit/s and ISO/Bosch CAN FD up to 5 Mbit/s payload rate |
| Protocols | Logs raw data from CAN-based protocols including J1939/FMS, CANopen, NMEA 2000, OBD2, CAN FD, UDS and more |
| Identifiers | Compliant with CAN specifications 2.0A 11-bit ID and 2.0B 29-bit ID |
| Bit-Rate Auto-Detect | Bit rate can be auto-detected or set manually |
| Retransmission | Configurable retransmission of frames that have lost arbitration or been disturbed by errors |
| Transceiver Protection | ±16 kV HBM ESD, ±15 kV IEC ESD, ±70 V bus fault and short circuit protection |
| Transceiver Protection | Common mode input voltage: ±30 V |
| Transceiver Protection | TXD dominant timeout prevents network blocking in the event of a failure |
LIN Bus
| Channels | 2 x LIN channels |
| Publisher/Subscriber | Each LIN channel can be configured as a LIN subscriber/publisher with support for LIN data transmission |
| Custom Length | Support for custom frame lengths |
| Standard | Compliant with LIN 2.X up to 20 Kbit/s, supporting Classic and Enhanced checksum formats |
| Transceiver Protection | ±8 kV HBM ESD, ±1.5 kV CDM and ±58 V bus fault protection |
| Transceiver Protection | TXD dominant timeout prevents network blocking in the event of a failure |
Data Logging
| SD Card | 8 GB extractable Class 10 industrial microSD card included, optional 32 GB; read speed up to 80 MB/s |
| Parallel CAN/LIN | Records data from up to 2 x CAN channels and 2 x LIN channels simultaneously |
| Real-Time Clock | CAN frames are date and timestamped with 50 microsecond resolution and battery backup |
| Real-Time Clock | RTC can be configured to match local time zones; default is UTC |
| Real-Time Clock | RTC can be auto-synced via WiFi or a CAN message, for example from the internal GNSS timestamp |
| Log File Format | Logs data in industry-standard binary MF4 format, easily converted to CSV, ASC, pandas, MATLAB and more |
| Data Compression | Configurable embedded log file compression with approximately 50–80% size reduction |
| Silent Mode | Configurable silent mode: restricted acknowledge-only mode or monitoring mode with zero transmission |
| Filters | 128/64 regular/extended ID filters per channel, including range, mask, acceptance and rejection filters |
| Prescaling | Prescale CAN frames by time or by data changes, for example if specific bytes change |
| Transmit | Transmit lists of CAN frames per channel as single-shot or periodic messages for OBD2, UDS, XCP, J1939 requests and more |
| Gateway Routing | Data from CAN1/2, LIN1/2 and CAN9 GPS/IMU can be routed onto CAN1/2 with optional ID re-mapping |
| CAN Error Frames | Supports logging of CAN error frames including bit-stuffing, form, CRC, bit and acknowledgement errors |
| LIN Error Frames | Supports logging of LIN error frames including checksum, receive, synchronisation and transmission errors |
| Remote Frames | Supports logging and transmission of remote CAN frames, RTR |
| Cyclic Logging | Optional cyclic logging mode deletes the oldest log file when the SD card is full |
| Advanced Triggers | Control signal lets you start/stop logging based on custom CAN IDs and data thresholds |
| CAN Heartbeat | Optionally transmits heartbeat CAN frame with device status, storage used and RTC time |
| File Split | Configurable log file split by size, 1–512 MB, and/or time period, 0–86400 seconds |
| Power Safe | 100% power-safe data logging with no file corruption when disconnected |
| Unique Device ID | Each device has a globally unique ID ensuring unique log file naming |
| Data Encryption | Log files can be encrypted at rest on the SD card for security, GDPR and CCPA, including integrity check |
WiFi
| Transfer Modes | Station mode connects to a WiFi access point to transfer data |
| Protocol | HTTP/HTTPS for stable and secure transfers, ideal for big data telematics |
| Access Points | Add 1–4 WiFi access points in prioritised order, conditional on signal strength |
| Over-The-Air | Configuration and firmware over-the-air, COTA/FOTA, with configurable sync rate and optional disable |
| WiFi Heartbeat | If enabled, the CANedge2 periodically checks in to your server by uploading a small device status file |
| Data Upload State | Optionally disable or enable upload of log files via over-the-air configuration |
| Range | Strong range via external WiFi antenna |
| LAN Standard | IEEE 802.11 b/g/n |
| Frequency | 2.412–2.472 GHz, power output 18.5 dBm, 802.11b 11 Mbps |
| Antenna | External SMA antenna, <2 dBi gain; can be extended or replaced by a WiFi rooftop antenna |
| S3 Server Interface | Upload data to your own cloud server, including Amazon, Google, Azure or self-hosted MinIO server |
| Web Server Interface | Pull data from SD via WiFi through browser web page or REST API; no server required |
WiFi Security
| HTTPS | Data and over-the-air updates can be sent via HTTPS TLS 1.2 for secure transfer to server |
| WPA/WPA2 | Supports WPA/WPA2 |
| Credential Encryption | WiFi access point and S3 server credentials can be encrypted in the configuration on the device SD card |
| Signed Firmware | Firmware updates are digitally signed to verify that they are from a trusted source |
| User Policies | Fully customise access rights across CANedge devices and end users through S3 policies |
GNSS & 3D IMU
| Module | Professional-grade u-blox NEO-M9V sensor module, 92-channel, with built-in gyroscope and accelerometer |
| GNSS | Supports combinations of GPS USA, Galileo Europe, BeiDou China and GLONASS Russia |
| Sensor Fusion | Enhanced position precision via sensor fusion UDR of GNSS and 3D IMU for automotive applications only |
| Sensor Fusion | Up to 3x better accuracy compared with GNSS-only receivers |
| Sensor Fusion | Extended and improved GNSS fix in GNSS-hostile areas such as urban environments and tunnels |
| Accuracy | Position: 2.0 m CEP, Circular Error Probable |
| Accuracy | Heading: 0.3° | Pitch: 0.4° | Roll: 0.6°, 68% at 30 m/s |
| Accuracy | Velocity: 0.08 m/s |
| Sensitivity | Tracking/navigation: 160 dBm | Cold starts: 148 dBm |
| Acquisition | Cold starts: 25 s |
| GNSS Antenna | Required for GNSS-based data, not required for IMU data |
Data Parameters
| CAN Encoding | GNSS/IMU data is encoded as CAN messages within the CANedge log files on a separate channel |
| Configuration | GNSS/IMU messages can be filtered or prescaled for custom message inclusion and frequency |
| Configuration | Optionally record GNSS/IMU messages only if valid |
| Signals | The module adds several GNSS/IMU signals; for the full list, see the documentation or DBC file |
| GNSS Position | Longitude and latitude information at 5 Hz |
| GNSS Time | Precise GNSS-based epoch timestamp at 5 Hz |
| GNSS Status | Fix type NO/UDR/2D/3D/GNSS+UDR and satellite count at 5 Hz |
| GNSS Speed | Travel speed in m/s and km/h at 5 Hz |
| GNSS Altitude | Altitude in metres at 5 Hz |
| Attitude/Orientation | Roll, pitch and heading for automotive applications only, at 5 Hz |
| GNSS Odometer | Distance travelled since power on at 5 Hz |
| 3D IMU | Accelerometer-based acceleration X, Y, Z at 5 Hz |
| Geofences | Status of configured geofences at 5 Hz |
Electrical
| Input Supply | +7 V to +32 V DC via the Channel 1 DB9, for example from vehicle or machine power supply |
| Power Consumption | Extremely low, approximately 1 W, with no risk of battery drainage |
| Protection | Reverse voltage protection on CAN-bus supply |
| Protection | Transient voltage event protection on supply lines |
Mechanical
| Enclosure & Weight | Compact aluminium enclosure: 75 x 47 x 20 mm, W x L x H excluding flanges and antenna connector. Weight: 100 g |
| Antennas | WiFi antenna and GPS antenna included |
| Flanges | Flanges with 4 x M3 screw holes, head diameter <6 mm; see also CANedge mounting kit |
| Connector | 2 x standard D-sub 9 DB9 connectors, with optional OBD2, J1939 and other adapters |
| Pin-Out | See the product manual for DB9 connector pin-outs |
| Configurable Power Out | Channel 2 can be configured to supply 5 V to external modules, such as CANmod sensor-to-CAN modules |
| LEDs | Logger status via 6 external LEDs: Power, CH1, CH2, Memory, WiFi and GNSS |
| Temperature | Operating temperature: -25°C to +70°C |
| IP Rating | IP40, optional IP67 enclosure kit available |
The plug & play 2x CAN/LIN logger records timestamped CAN data (Classical/CAN FD) to the extractable 8 GB industrial SD card.
The compact device connects via WiFi access points to securely push data to your own server - with support for over-the-air updates.
The device includes GNSS/IMU, adding data like position, speed, attitude, acceleration and more.
Ideal for telematics, R&D field tests, diagnostics and predictive maintenance.
Software/APIs are free & open source - with no subscription fees or vendor lock-in.
Price includes GPS antenna.

General
| Functionality | Standalone CAN bus data logger with SD card, 2x CAN/LIN channels, WiFi and GNSS/IMU |
| Firmware | Supports free firmware updates for adding features |
| Configuration | Configuration files based on the popular open source JSON schema concept |
| Software | Free open source editor tool for easy device configuration, available offline and online |
| Software | Free open source CANcloud telematics platform for managing devices and data via your browser |
| Software | Multiple tools for mounting your S3 server as a local drive for easy access |
| Software | Free open source asammdf software and API for editing, DBC converting and plotting MF4 data |
| Software | Free open source MF4 converters for drag-and-drop conversion to CSV, ASC, TRC and more |
| Software | Free open source Python API for automated data processing, reporting and integrations |
| Software | Free open source telematics dashboards for visualising DBC-decoded data in your browser |
| Safety | CE-RED, FCC, IC, RoHS, ECE R10 automotive EMC, WPC ETA India, RCM Australia, ICASA South Africa |
| Safety | For Korea/Japan, a certified PB variant with internal WiFi antenna is available: KC, GITEKI |
| Warranty | 1-year warranty |
| Support | Free, fast and high-quality support |
| Origin | Denmark |
CAN Bus
| Channels | 2 x CAN channels including CAN FD support |
| Standard | ISO 11898 compliant with CAN up to 1 Mbit/s and ISO/Bosch CAN FD up to 5 Mbit/s payload rate |
| Protocols | Logs raw data from CAN-based protocols including J1939/FMS, CANopen, NMEA 2000, OBD2, CAN FD, UDS and more |
| Identifiers | Compliant with CAN specifications 2.0A 11-bit ID and 2.0B 29-bit ID |
| Bit-Rate Auto-Detect | Bit rate can be auto-detected or set manually |
| Retransmission | Configurable retransmission of frames that have lost arbitration or been disturbed by errors |
| Transceiver Protection | ±16 kV HBM ESD, ±15 kV IEC ESD, ±70 V bus fault and short circuit protection |
| Transceiver Protection | Common mode input voltage: ±30 V |
| Transceiver Protection | TXD dominant timeout prevents network blocking in the event of a failure |
LIN Bus
| Channels | 2 x LIN channels |
| Publisher/Subscriber | Each LIN channel can be configured as a LIN subscriber/publisher with support for LIN data transmission |
| Custom Length | Support for custom frame lengths |
| Standard | Compliant with LIN 2.X up to 20 Kbit/s, supporting Classic and Enhanced checksum formats |
| Transceiver Protection | ±8 kV HBM ESD, ±1.5 kV CDM and ±58 V bus fault protection |
| Transceiver Protection | TXD dominant timeout prevents network blocking in the event of a failure |
Data Logging
| SD Card | 8 GB extractable Class 10 industrial microSD card included, optional 32 GB; read speed up to 80 MB/s |
| Parallel CAN/LIN | Records data from up to 2 x CAN channels and 2 x LIN channels simultaneously |
| Real-Time Clock | CAN frames are date and timestamped with 50 microsecond resolution and battery backup |
| Real-Time Clock | RTC can be configured to match local time zones; default is UTC |
| Real-Time Clock | RTC can be auto-synced via WiFi or a CAN message, for example from the internal GNSS timestamp |
| Log File Format | Logs data in industry-standard binary MF4 format, easily converted to CSV, ASC, pandas, MATLAB and more |
| Data Compression | Configurable embedded log file compression with approximately 50–80% size reduction |
| Silent Mode | Configurable silent mode: restricted acknowledge-only mode or monitoring mode with zero transmission |
| Filters | 128/64 regular/extended ID filters per channel, including range, mask, acceptance and rejection filters |
| Prescaling | Prescale CAN frames by time or by data changes, for example if specific bytes change |
| Transmit | Transmit lists of CAN frames per channel as single-shot or periodic messages for OBD2, UDS, XCP, J1939 requests and more |
| Gateway Routing | Data from CAN1/2, LIN1/2 and CAN9 GPS/IMU can be routed onto CAN1/2 with optional ID re-mapping |
| CAN Error Frames | Supports logging of CAN error frames including bit-stuffing, form, CRC, bit and acknowledgement errors |
| LIN Error Frames | Supports logging of LIN error frames including checksum, receive, synchronisation and transmission errors |
| Remote Frames | Supports logging and transmission of remote CAN frames, RTR |
| Cyclic Logging | Optional cyclic logging mode deletes the oldest log file when the SD card is full |
| Advanced Triggers | Control signal lets you start/stop logging based on custom CAN IDs and data thresholds |
| CAN Heartbeat | Optionally transmits heartbeat CAN frame with device status, storage used and RTC time |
| File Split | Configurable log file split by size, 1–512 MB, and/or time period, 0–86400 seconds |
| Power Safe | 100% power-safe data logging with no file corruption when disconnected |
| Unique Device ID | Each device has a globally unique ID ensuring unique log file naming |
| Data Encryption | Log files can be encrypted at rest on the SD card for security, GDPR and CCPA, including integrity check |
WiFi
| Transfer Modes | Station mode connects to a WiFi access point to transfer data |
| Protocol | HTTP/HTTPS for stable and secure transfers, ideal for big data telematics |
| Access Points | Add 1–4 WiFi access points in prioritised order, conditional on signal strength |
| Over-The-Air | Configuration and firmware over-the-air, COTA/FOTA, with configurable sync rate and optional disable |
| WiFi Heartbeat | If enabled, the CANedge2 periodically checks in to your server by uploading a small device status file |
| Data Upload State | Optionally disable or enable upload of log files via over-the-air configuration |
| Range | Strong range via external WiFi antenna |
| LAN Standard | IEEE 802.11 b/g/n |
| Frequency | 2.412–2.472 GHz, power output 18.5 dBm, 802.11b 11 Mbps |
| Antenna | External SMA antenna, <2 dBi gain; can be extended or replaced by a WiFi rooftop antenna |
| S3 Server Interface | Upload data to your own cloud server, including Amazon, Google, Azure or self-hosted MinIO server |
| Web Server Interface | Pull data from SD via WiFi through browser web page or REST API; no server required |
WiFi Security
| HTTPS | Data and over-the-air updates can be sent via HTTPS TLS 1.2 for secure transfer to server |
| WPA/WPA2 | Supports WPA/WPA2 |
| Credential Encryption | WiFi access point and S3 server credentials can be encrypted in the configuration on the device SD card |
| Signed Firmware | Firmware updates are digitally signed to verify that they are from a trusted source |
| User Policies | Fully customise access rights across CANedge devices and end users through S3 policies |
GNSS & 3D IMU
| Module | Professional-grade u-blox NEO-M9V sensor module, 92-channel, with built-in gyroscope and accelerometer |
| GNSS | Supports combinations of GPS USA, Galileo Europe, BeiDou China and GLONASS Russia |
| Sensor Fusion | Enhanced position precision via sensor fusion UDR of GNSS and 3D IMU for automotive applications only |
| Sensor Fusion | Up to 3x better accuracy compared with GNSS-only receivers |
| Sensor Fusion | Extended and improved GNSS fix in GNSS-hostile areas such as urban environments and tunnels |
| Accuracy | Position: 2.0 m CEP, Circular Error Probable |
| Accuracy | Heading: 0.3° | Pitch: 0.4° | Roll: 0.6°, 68% at 30 m/s |
| Accuracy | Velocity: 0.08 m/s |
| Sensitivity | Tracking/navigation: 160 dBm | Cold starts: 148 dBm |
| Acquisition | Cold starts: 25 s |
| GNSS Antenna | Required for GNSS-based data, not required for IMU data |
Data Parameters
| CAN Encoding | GNSS/IMU data is encoded as CAN messages within the CANedge log files on a separate channel |
| Configuration | GNSS/IMU messages can be filtered or prescaled for custom message inclusion and frequency |
| Configuration | Optionally record GNSS/IMU messages only if valid |
| Signals | The module adds several GNSS/IMU signals; for the full list, see the documentation or DBC file |
| GNSS Position | Longitude and latitude information at 5 Hz |
| GNSS Time | Precise GNSS-based epoch timestamp at 5 Hz |
| GNSS Status | Fix type NO/UDR/2D/3D/GNSS+UDR and satellite count at 5 Hz |
| GNSS Speed | Travel speed in m/s and km/h at 5 Hz |
| GNSS Altitude | Altitude in metres at 5 Hz |
| Attitude/Orientation | Roll, pitch and heading for automotive applications only, at 5 Hz |
| GNSS Odometer | Distance travelled since power on at 5 Hz |
| 3D IMU | Accelerometer-based acceleration X, Y, Z at 5 Hz |
| Geofences | Status of configured geofences at 5 Hz |
Electrical
| Input Supply | +7 V to +32 V DC via the Channel 1 DB9, for example from vehicle or machine power supply |
| Power Consumption | Extremely low, approximately 1 W, with no risk of battery drainage |
| Protection | Reverse voltage protection on CAN-bus supply |
| Protection | Transient voltage event protection on supply lines |
Mechanical
| Enclosure & Weight | Compact aluminium enclosure: 75 x 47 x 20 mm, W x L x H excluding flanges and antenna connector. Weight: 100 g |
| Antennas | WiFi antenna and GPS antenna included |
| Flanges | Flanges with 4 x M3 screw holes, head diameter <6 mm; see also CANedge mounting kit |
| Connector | 2 x standard D-sub 9 DB9 connectors, with optional OBD2, J1939 and other adapters |
| Pin-Out | See the product manual for DB9 connector pin-outs |
| Configurable Power Out | Channel 2 can be configured to supply 5 V to external modules, such as CANmod sensor-to-CAN modules |
| LEDs | Logger status via 6 external LEDs: Power, CH1, CH2, Memory, WiFi and GNSS |
| Temperature | Operating temperature: -25°C to +70°C |
| IP Rating | IP40, optional IP67 enclosure kit available |
