QuSpot Antenna for Teltonika RUTX11 ver. US (Band71)
Regular price£125.00 Sale price Pricing excludes VAT.Shipping cost calculated in checkout.
Notice:
Some of our products are on varied lead times, For confirmation on when you can expect your order to arrive, please call in and speak to one of our experts.
Our team are available from 9:00am - 5:00pm and will be happy to discuss any questions.

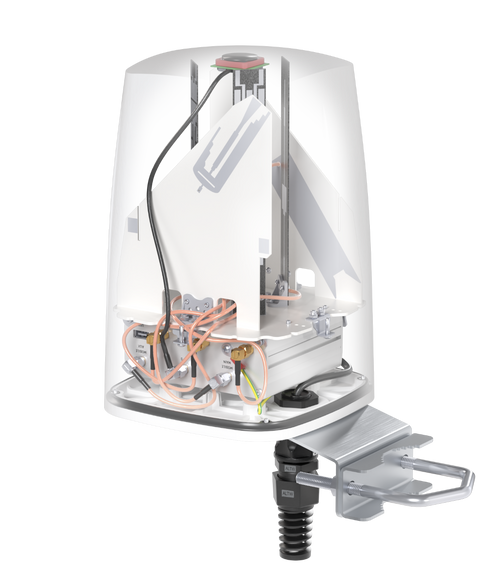

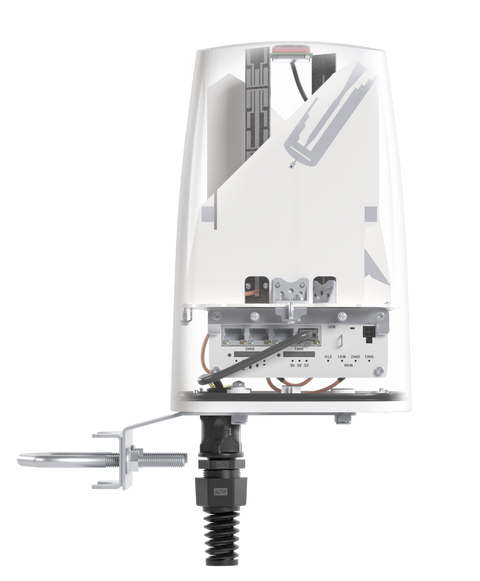

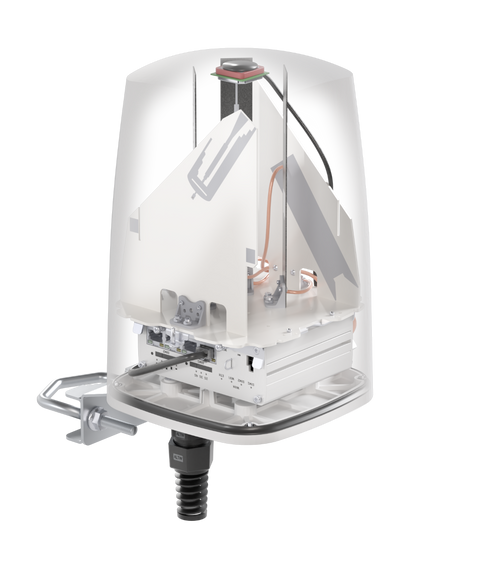

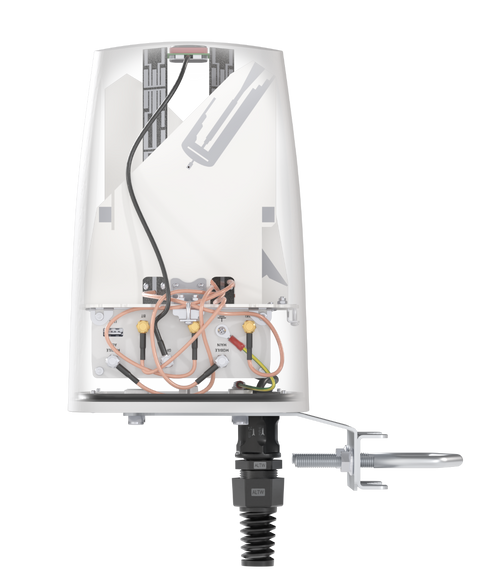

INTEGRATED MULTI-BAND LTE & 5G OMNI ANTENNA + WI-FI OMNI ANTENNA + GPS ACTIVE ANTENNA + BLUETOOTH ANTENNA + PLACE TO INSTALL TELTONIKA RUTX11 (ALL-IN-ONE)
QuSpot for RUTX11 ver. US (Band71) is an outdoor antenna designed to provide reliable wireless connectivity in a variety of environments. This product is an all in one solution that integrates a high gain omnidirectional 5G and Wi Fi antennas with RUTX11 into a single IP67 enclosure.
QuSpot for RUTX11 is an ideal solution for outdoor wireless connectivity in moving applications such as transportation, yachting, boats and camping but also city centres with high signal density.
This product is also compatible with RUTM11. If used with RUTM11, the Bluetooth antenna is unused.
Why QuSpot for Teltonika RUTX11?
- Outdoor antenna works in any weather conditions, IP67
- Antenna perfectly matched with the router
- Passive POE support
- Made in Europe
ADDITIONAL SPECIFICATIONS
5G antenna specification
| Frequency |
617 - 960 MHz 1.7 - 2.7 GHz 3.3 - 4.3 GHz |
| Gain |
617 - 960 MHz : 2 dBi 1.7 - 2.7 GHz : 4 dBi 3.3 - 4.3 GHz : 4.5 dBi |
| Supported LTE bands | 1, 2, 3, 4, 5, 7, 8, 9, 10, 12, 13, 14, 1, 2, 3, 4, 5, 7, 8, 9, 10, 12, 13, 14, 17, 18, 19, 20, 22, 25, 26, 27, 28, 29, 30, 33, 34, 35, 36, 37, 38, 39, 40, 41, 42, 43, 44, 48, 49, 52, 53, 65, 66, 67, 68, 69, 71, 85, 103, 1067, 18, 19, 20, 22, 25, 26, 27, 28, 29, 30, 33, 34, 35, 36, 37, 38, 39, 40, 41, 42, 43, 44, 48, 49, 52, 53, 65, 66, 67, 68, 69, 71, 85, 103, n77, n78, n80, n81, n82, n83, n84, n86, n89, n90, n95, n97, n98, n100, n101 |
| VSWR | <2.00, max <2.50 |
| Beamwidth | 360°/25° ±5° |
| Polarization | Vertical |
| Impedance | 50 Ω |
| Connector | 2x SMA |
| Cable Type | RG316 |
Wi-Fi antenna specification
| Frequency |
2.4 - 2.5 GHz 4.7 - 6 GHz |
| Gain |
2.4 - 2.5 GHz : 6 dBi 4.7 - 6 GHz : 7.5 dBi |
| VSWR | <1.70, max <2.00 |
| Beamwidth | 360°/25° ±5° |
| Polarization | Vertical |
| Impedance | 50 Ω |
| Connector | 2x RPSMA |
| Cable Type | RG316 |
GPS Active antenna specification
| Frequency | 1.56 – 1.61 GHz |
| VSWR | < 2 |
| Gain | 3 dBi |
| Gain 3V | 28 dBi |
| DC Power Input | 2.5 V ~ 6.5 V |
| Power Consumption | 2.5-6.5mA |
| Impedance | 50 Ω |
| Polarization | RHCP (right hand circularly polarized) |
| Connector | 1x SMA |
| Cable Type | RG174 |
Bluetooth antenna specification
| Frequency | 2.20 - 2.70 GHz |
| Gain | 2 dBi |
| VSWR | <1.70, max <2.00 |
| Beamwidth | 360°/25° ±5° |
| Polarization | Vertical |
| Impedance | 50 Ω |
| Connector | 1x RPSMA |
| Cable Type | RG316 |
Mechanical specification
| Materials | ABS, aluminum, PTFE |
| Connector Type | RJ45 |
| Ingress Protection | IP67 |
| Dimensions |
160 x 160 x 240 mm 6.3 x 6.3 x 9.45 inch |
| Weight |
1.5 kg 3.31 lbs |
| Operating Temperature |
From -40°C to 75°C From -40°F to 167°F |
| Mast Diameter |
40-60 mm 1.57-2.36 inch |
Compatible Routers
| Teltonika | RUTM11, RUTX11 |
