QuSpot Antenna for Teltonika RUT956/RUT955 ver. US (Band71)
Regular price£125.00 Sale price Pricing excludes VAT.Shipping cost calculated in checkout.
Notice:
Some of our products are on varied lead times, For confirmation on when you can expect your order to arrive, please call in and speak to one of our experts.
Our team are available from 9:00am - 5:00pm and will be happy to discuss any questions.
Have any questions?
If you’re unsure which product is right for your project, our engineering team is here to help.
Use the chat bubble below, or call us on +44 (0) 1234 247176 — we’ll guide you to the right choice for your application.
Please note: Some products have varied lead times. For exact delivery timeframes, please call in to speak with one of our team.
INTEGRATED MULTI-BAND LTE & 5G OMNI ANTENNA + WI-FI OMNI ANTENNA + GPS ACTIVE ANTENNA + PLACE TO INSTALL TELTONIKA RUT956 OR RUT955 (ALL-IN-ONE)

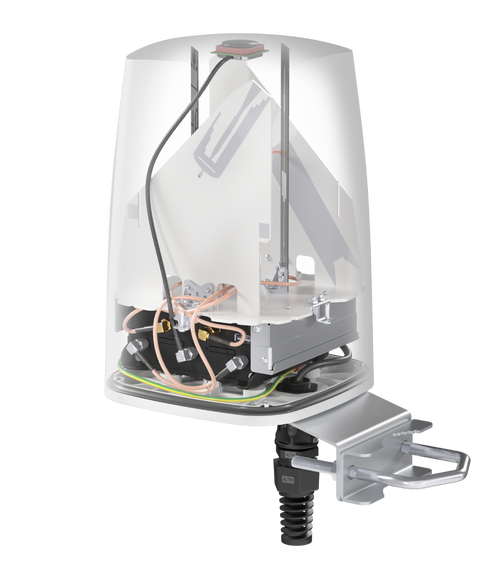

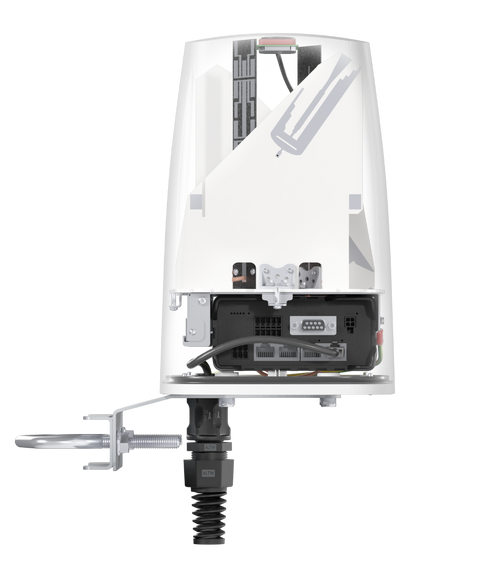

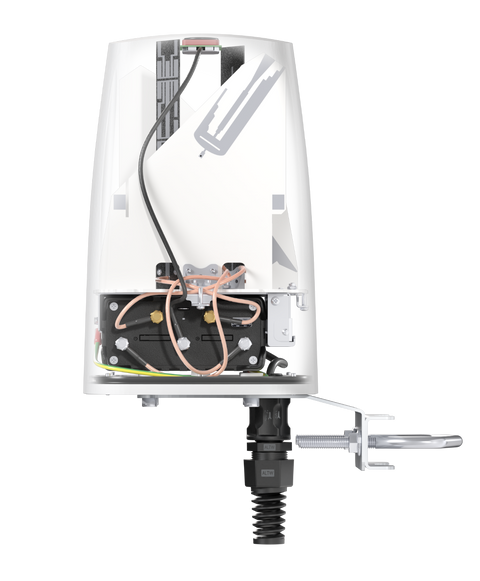

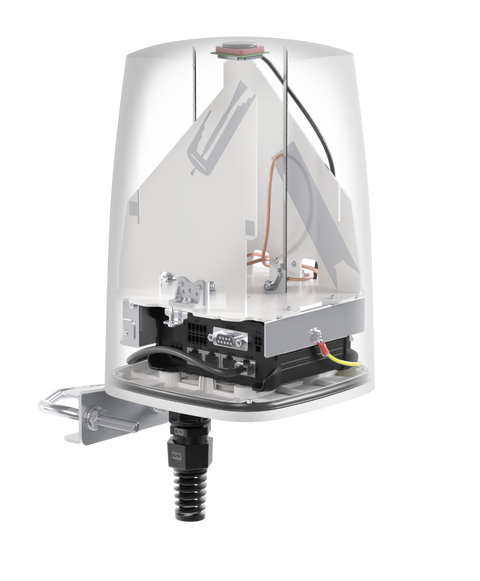

QuSpot for RUT956, RUT955 or RUT906 ver. US (Band71) is an outdoor antenna designed to provide reliable wireless connectivity in a variety of environments. This product is an all in one solution that integrates a high gain omnidirectional 5G and Wi Fi antennas with RUT956, RUT955 or RUT906 into a single IP67 enclosure.
QuSpot for RUT956, RUT955 or RUT906 is an ideal solution for outdoor wireless connectivity in moving applications such as transportation, yachting, boats and camping but also city centres with high signal density.
Why QuSpot for Teltonika RUT956/955?
- Outdoor antenna works in any weather conditions, IP67
- Antenna perfectly matched with the router
- passive POE support
- Made in Europe
ADDITIONAL SPECIFICATION
5G Antenna Specification
| Frequency |
617 - 960 MHz 1.7 - 2.7 GHz 3.3 - 4.3 GHz |
| Gain |
617 - 960 MHz : 2 dBi 1.7 - 2.7 GHz : 4 dBi 3.3 - 4.3 GHz : 4.5 dBi |
| Supported LTE Bands |
1, 2, 3, 4, 5, 7, 8, 9, 10, 12, 13, 14, 1, 2, 3, 4, 5, 7, 8, 9, 10, 12, 13, 14, 17, 18, 19, 20, 22, 25, 26, 27, 28, 29, 30, 33, 34, 35, 36, 37, 38, 39, 40, 41, 42, 43, 44, 48, 49, 52, 53, 65, 66, 67, 68, 69, 71, 85, 103, 1067, 18, 19, 20, 22, 25, 26, 27, 28, 29, 30, 33, 34, 35, 36, 37, 38, 39, 40, 41, 42, 43, 44, 48, 49, 52, 53, 65, 66, 67, 68, 69, 71, 85, 103, n77, n78, n80, n81, n82, n83, n84, n86, n89, n90, n95, n97, n98, n100, n101 |
| VSWR |
<2.00, max <2.50 |
| Beamwidth |
360°/25° ±5° |
| Polarization |
Vertical |
| Impedance |
50 Ω |
| Connector |
2x SMA |
| Cable Type |
RG316 |
Wi-Fi antenna specification
| Frequency |
2.4 - 2.5 GHz 4.7 - 6 GHz |
| Gain |
2.4 - 2.5 GHz : 6 dBi 4.7 - 6 GHz : 7.5 dBi |
| VSWR |
<1.70, max <2.00 |
| Beamwidth |
360°/25° ±5° |
| Polarization |
Vertical |
| Impedance |
50 Ω |
| Connector |
2x RPSMA |
| Cable Type |
RG316 |
GPS Active antenna specification
| Frequency | 1.56 – 1.61 GHz |
|
VSWR |
< 2 |
|
Gain |
3 dBi |
| Gain 3V | 28 dBi |
| DC Power input | 2.5 V ~ 6.5 V |
| Power Consumption | 2.5-6.5mA |
| Impedance | 50 Ω |
| Polarization | RHCP (right hand circularly polarized) |
| Connector | 1x SMA |
| Cable Type | RG174 |
Mechanical Specification
| Materials | ABS, aluminum, PTFE |
| Connector Type | RJ45 |
| Ingress Protection | IP67 |
| Dimensions |
160 x 160 x 240 mm 6.3 x 6.3 x 9.45 inch |
| Weight |
1.5 kg 3.31 lbs |
| Operating Temperature |
From -40°C to 75°C From -40°F to 167°F |
| Mast Diameter |
40-60 mm 1.57-2.36 inch |
Compatible Routers
| Teltonika |
RUT906 |
