QuSpot Antenna for RUT2xx ver. US (Band71)
Regular price£99.00 Sale price Pricing excludes VAT.Shipping cost calculated in checkout.
Notice:
Some of our products are on varied lead times, For confirmation on when you can expect your order to arrive, please call in and speak to one of our experts.
Our team are available from 9:00am - 5:00pm and will be happy to discuss any questions

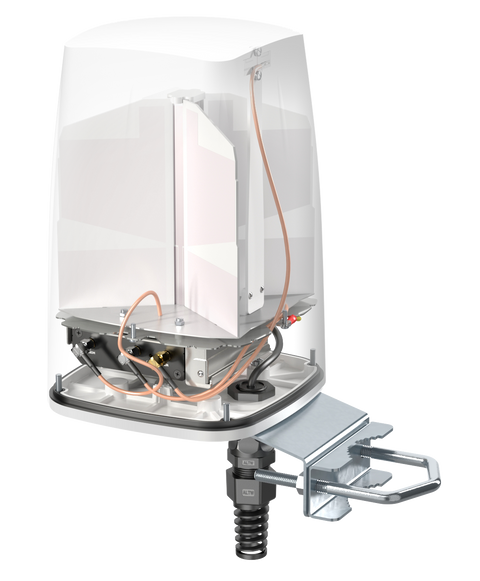

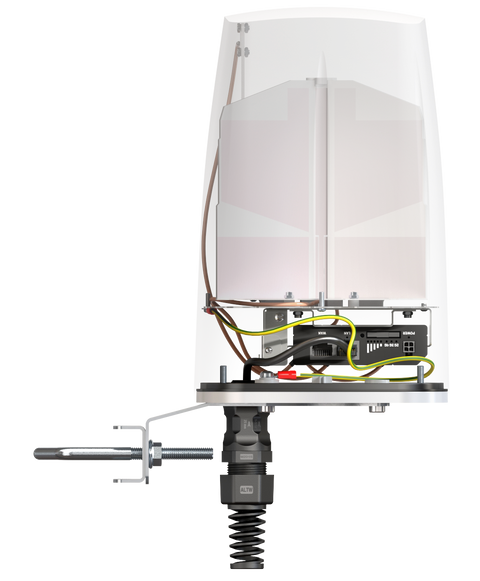

Integrated multi-band LTE omni antenna ver. US + WiFi omni antenna + place to install Teltonika RUT241, RUT240 or 230 (All-in-one)
QuSpot omnidirectional LTE antenna ver. US for Teltonika RUT260, RUT241, RUT240, RUT230 or RUT200 routers is a perfect outdoor device for mobile and fixed installations e.g. CCTV, hotspots, industrial areas, campervans, ships etc.. In addition to having omnidirectional, multi-band LTE antennas, it has also embedded omnidirectional Wi-Fi antenna. If you use RUT2xx with QuSpot antenna, you get an integrated complete solution with embedded router and multi band antennas in one enclosure.
Why QuSpot for RUT2XX?
- Outdoor antenna works in any weather conditions, IP67
- Antenna perfectly matched with the router

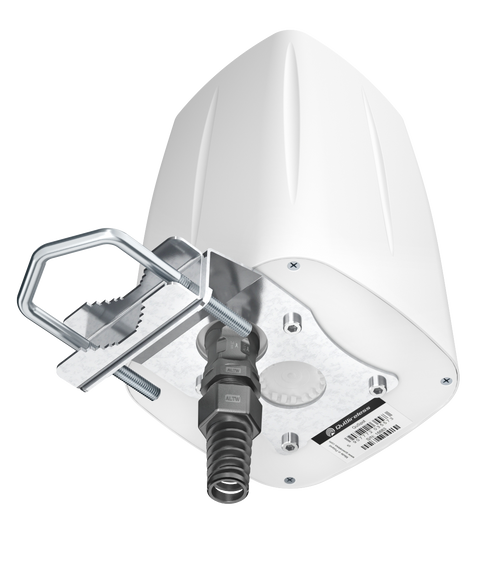

- Wall or mast mounting system
- Made in Europe
ADDITIONAL SPECIFICATION
LTE antenna specification
| Frequency |
617 - 960 MHz 1.7 - 2.2 GHz 2.3 - 2.7 GHz 3.3 - 3.8 GHz |
| Gain |
617 - 960 MHz : 3 dBi 1.7 - 2.2 GHz : 3.5 dBi 2.3 - 2.7 GHz : 3.5 dBi 3.3 - 3.8 GHz : 4dBi |
| Supported LTE bands | 1, 2, 3, 4, 5, 7, 8, 9, 10, 12, 13, 14, 17, 18, 19, 20, 22, 25, 26, 27, 28, 29, 30, 33, 34, 35, 36, 37, 38, 39, 40, 41, 42, 43, 44, 48, 49, 52, 53, 65, 66, 67, 68, 69, 71, 85, 103, 106 |
| VSWR | <1.80, max <2.00 |
| Beamwidth | 360°/35° ±5° |
| Polarization | Vertical |
| Impedance | 50 Ω |
| Connector | 2x SMA |
| Cable Type | RG316 |
Wi-Fi antenna specification
| Frequency | 2.4 - 2.5 GHz |
| Gain | 6 dBi |
| VSWR | <1.70, max <2.00 |
| Beamwidth | 360°/25° ±5° |
| Polarization | Vertical |
| Impedance | 50 Ω |
| Connector | 1x RPSMA |
| Cable Type | RG316 |
Mechanical specification
| Materials | ABS, aluminum, PTFE |
| Connector Type | RJ45 |
| Ingress Protection | IP67 |
| Dimensions |
160 x 160 x 240 mm 6.3 x 6.3 x 9.45 inch |
| Weight |
1.5 kg 3.31 lbs |
| Operating Temperature |
From -40°C to 80°C From -40°F to 176°F |
| Mast Diameter |
40-60 mm 1.57-2.36 inch |
Compatible Routers
| Teltonika |
