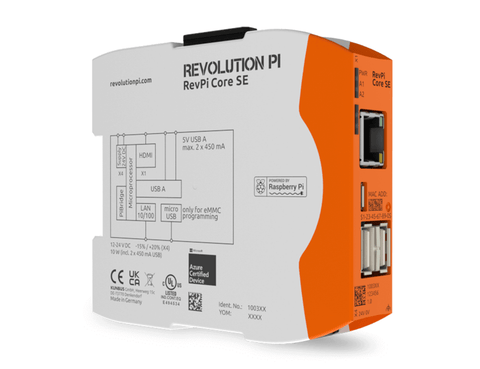

RevPi Core SE
by KunbusRegular price£276.00 Sale price Pricing excludes VAT.
Shipping cost calculated in checkout.
Some of our products are on varied lead times, For confirmation on when you can expect your order to arrive, please call in and speak to one of our experts.
Our team are available from 9:00am - 5:00pm on +44(0) 1234 247 176 and will be happy to discuss any questions.questions.
Pickup currently unavailable
|Housing dimensions (HxWxD)||96 x 22.5 x 110.5 mm|
|Housing type||DIN rail housing (for DIN rail version EN 50022)|
|Weight||approx. 115 g|
|Power supply||12-24 V DC -15 % / +20 %, reverse polarity protected 1|
|Max. power consumption||10 W (incl. 900 mA total USB load) 2|
|Operating temperature||-25 °C to +55 °C|
|Storage temperature||-40 °C to +85 °C|
|Humidity (40 °C)||up to 93 % (non-condensing)|
|Interfaces||2 x USB A (Total current consumption from both sockets max. 900 mA) 2
1 x RJ45 10/100 Ethernet
1 x Micro-USB (solely for image transfer to eMMC)
1 x Micro HDMI 2.0a (4K)
2 x PiBridge system bus
|Connectors||1 x 4-pole screw-type terminal for power supply|
|Processor||Broadcom BCM2711, quad-core Arm Cortex-A72|
|Clock rate||1.5 GHz|
|Processor cooling||Passive with heat sink|
|RAM||1 GB LPDDR4|
|Flash memory||8 GB (article no.: 100365) / 16 GB (article no.: 100366) / 32 GB (article no.: 100367)|
|Compatible modules for system expansion||All RevPi IO modules modules can be connected via the PiBridge system bus.
! Not compatible with RevPi Gateways !
|ESD protection||4 kV / 8 kV (according to EN 61131-2 and IEC 61000-6-2)|
|EMI tests||Passed (according to EN 61131-2 and IEC 61000-6-2)|
|Surge / Burst tests||Passed (according to EN 61131-2 and IEC 61000-6-2)|
|Buffer time RTC||min. 24 h|
|Optical indicator||3 status LEDs (bi-color), two of them freely programmable|
|UL certification||Yes, UL-File-No. E494534
Note: The device may only be supplied from circuits that comply with Class 2 or Safety Extra Low Voltage (SELV) according to Class 9.4 of UL 61010-1.
