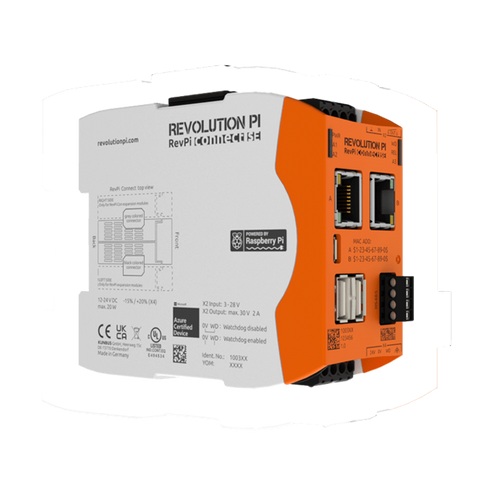

| Housing dimensions (HxWxD) |
96 x 45 x 110.5 mm |
| Housing type |
DIN rail housing (for DIN rail version EN 50022) |
| Housing material |
Polycarbonate |
| Weight |
approx. 197 g / 224 g (incl. connectors) |
| IP Code |
IP20 |
| Power supply |
12-24 V DC -15 % / +20 %, reverse polarity protected |
| Max. power consumption |
10 W (incl. 900 mA total USB load) 2 |
| Operating temperature |
-25 °C to +55 °C |
| Storage temperature |
-40 °C to +85 °C |
| Humidity (40 °C) |
up to 93 % (non-condensing) |
| Interfaces |
2 x USB A (Total current draw from both sockets max. 1 A) 2
2 x RJ45 10/100 Ethernet (using separate MAC addresses)
1 x RS485 screw-type terminal (not galvanically isolated)
1 x Micro-USB (solely for image transfer to eMMC)
1 x Micro HDMI HDMI 2.0a (4K)
1 x PiBridge system bus
1 x ConBridge system bus |
| Connectors |
1 x 4-pole screw-type terminal for relay contact and signal input
1 x 4-pole screw-type terminal for power supply |
| Processor |
Broadcom BCM2711, quad-core Arm Cortex-A72 |
| Clock rate |
1.5 GHz |
| Processor cooling |
Passive with heat sink |
| RAM |
1 GB LPDDR4 |
| Flash memory |
8 GB (Article No.: 100368) / 16 GB (Article No.: 100369) / 32 GB (Article No.: 100370) |
| Number of digital input channels |
1 |
| Input Type |
24 V control voltage (e.g. for power-good signal of a UPS) |
| Input Threshold |
approx. 3.0 V (0 -> 1) / 2.3 V (1 -> 0) |
| Input protection |
against overvoltage, negative voltages |
| Number of digital output channels |
1 |
| Output type |
Relay contact, approval up to 30 V switching voltage (e.g. for power supply of a router) |
| Maximum current load of the contact |
2 A @ 30V DC (resistive load!) |
| Software integration of input and output |
Via GPIOs and process image. Output is optionally switched by hardware watch-dog. |
| Hardware watchdog functionality |
Can be disabled by bridging the 4-pole screw-type terminal. Reset by toggling a GPIO or alternatively a bit in the process image. |
| Hardware watchdog intervall |
Trigger after approx. 60 seconds without toggling the reset bit. |
| Compatible modules for system expansion |
All RevPi IO modules and RevPi Gateway modules can be connected via the
PiBridge system bus.
All RevPi Con modules can be connected via the ConBridge system bus.
! Not compatible with RevPi Gateways ! |
| ESD protection |
4 kV / 8 kV (according to EN61131-2 and IEC 61000-6-2) |
| EMI tests |
Passed (according to EN61131-2 and IEC 61000-6-2) |
| Surge/Burst tests |
Passed (according to EN61131-2 and IEC 61000-6-2) |
| Buffer time |
RTC min. 24 h |
| Optical indicator |
6 status LEDs (bi-color), two of them freely programmable |
| RoHS conformity |
Yes |
| CE conformity |
Yes |
| UL certification |
Yes, UL-File-No. E494534
Note: The device may only be supplied from circuits that comply with Class 2 or
Safety Extra Low Voltage (SELV) according to Class 9.4 of UL 61010-1 |
