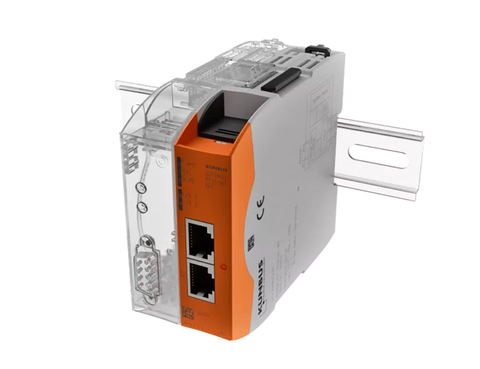

PROFINET IRT Gateway Module
by Kunbus
Regular price£243.00 Sale price Pricing excludes VAT.Shipping cost calculated in checkout.
Notice:
Some of our products are on varied lead times, For confirmation on when you can expect your order to arrive, please call in and speak to one of our experts.
Our team are available from 9:00am - 5:00pm on +44(0) 1234 247 176 and will be happy to discuss any questions.questions.
The PROFINET IRT Gateway Module Specification
Protocol | PROFINET IRT |
Module version | Slave |
Network connector | 2 x RJ45 |
Max. baud rate | 100 Mbit/s |
I/O data | 512 Byte IN/OUT |
Protection class | IP20 |
Power supply | 24 V DC (-15/+20 %) |
Current consumption | 100 mA |
Dimensions | 110.4 x 22.5 x 101.4 mm |
Weight | Approx. 90 g |
Reverse voltage protection | Yes |
Operating temperature | 0 °C to 60 °C |
Storage temperature | -25 °C to 70 °C |
Max. relative humidity (at 40 °C) | 93 % (non condensing) |
Casing material | Polycarbonate |
Mounting | DIN rail (EN50022) |
Certifications | CE, UL (E494534) |
Article no. | 100074 |
The Profinet IRT gateway module is used to facilitate communication between Profinet networks and devices that require real-time communication capabilities. This is crucial for applications where precise timing and coordination are critical, such as motion control, robotics or high-speed manufacturing processes.
Profinet IRT gateway modules act as a bridge between Profinet IRT (Isochronous Real-Time) networks and other communication protocols or devices, allowing seamless integration of real-time communications with non-Profinet devices or networks such as
- Modbus TCP
- Ethernet/IP
- DeviceNet
Explore our CAN-bus Gateways.
The PROFINET IRT Gateway Module Specification
Protocol | PROFINET IRT |
Module version | Slave |
Network connector | 2 x RJ45 |
Max. baud rate | 100 Mbit/s |
I/O data | 512 Byte IN/OUT |
Protection class | IP20 |
Power supply | 24 V DC (-15/+20 %) |
Current consumption | 100 mA |
Dimensions | 110.4 x 22.5 x 101.4 mm |
Weight | Approx. 90 g |
Reverse voltage protection | Yes |
Operating temperature | 0 °C to 60 °C |
Storage temperature | -25 °C to 70 °C |
Max. relative humidity (at 40 °C) | 93 % (non condensing) |
Casing material | Polycarbonate |
Mounting | DIN rail (EN50022) |
Certifications | CE, UL (E494534) |
Article no. | 100074 |
