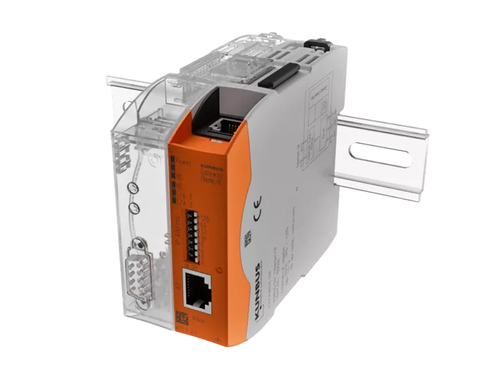

RevPi Gate Ethernet/IP Slave
by Kunbus
Regular price£173.00 Sale price Pricing excludes VAT.Shipping cost calculated in checkout.
Notice:
Some of our products are on varied lead times, For confirmation on when you can expect your order to arrive, please call in and speak to one of our experts.
Our team are available from 9:00am - 5:00pm on +44(0) 1234 247 176 and will be happy to discuss any questions.questions.
The RevPi Gate Ethernet/IP Slave Specification
Protocol | EtherNet/IP |
Module version | Slave |
Network connector | 2 x RJ45 |
Max. baud rate | 10/100 Mbit/s |
I/O data | Max. 480 Bytes IN/OUT |
Protection class | IP20 |
Power supply | 24 V DC (-15/+20 %) |
Current consumption | 100 mA |
Dimensions | 110.4 x 22.5 x 101.4 mm |
Weight | Approx. 90 g |
Reverse voltage protection | Yes |
Operating temperature | 0 °C to 60 °C |
Storage temperature | -25 °C to 70 °C |
Max. relative humidity (at 40 °C) | 93 % (non condensing) |
Casing material | Polycarbonate |
Mounting | DIN rail (EN50022) |
Certifications | CE, UL (E494534) |
Article no. | 100066 |
The RevPi Gate Ethernet/IP allows communication with an Ethernet/IP master controller or other devices on the network, integrating the Revolution Pi system into an existing EtherNet/IP network. It allows seamless integration and data exchange.
Like other Revolution Pi components, the RevPi Gate Ethernet/IP Slave follows a modular design, making it easy to integrate into existing industrial automation setups. It is connected to the respective base module via the overhead system connector and can be combined with other Revolution Pi modules to create custom automation solutions tailored to specific requirements.
Explore our CAN-bus Gateways.
