FRC-EP170 Bundle (FR, CAN[4], LIN, DIO[4]) - with RTL: FR, GW, RBS
by Ixxat
Regular price£3,900.00 Sale price Pricing excludes VAT.Shipping cost calculated in checkout.
Rating: 5.0 out of 5.0 5 / 5Notice:
Some of our products are on varied lead times, For confirmation on when you can expect your order to arrive, please call in and speak to one of our experts.
Our team are available from 9:00am - 5:00pm on +44(0) 1234 247 176 and will be happy to discuss any questions.
FRC-EP190 vs FRC-EP170
Variant Comparison Table
Feature | FRC-EP190 Plus CANonly |
FRC-EP190 FlexRay Plus 4 |
FRC-EP190 Max EtherCAT |
FRC-EP170 |
FRC-EP170 CANonly |
FRC-EP170 Plus CANonly |
---|---|---|---|---|---|---|
Order number | 1.13.0094.10107 | 1.13.0094.10507 | 1.13.0094.10407 | 1.13.0142.00002 | 1.13.0142.01002 | 1.13.0142.01302 |
Galvanic isolation | Yes | Yes | Yes | - | - | - |
FlexRay A/B | 0 | 1 | 1 | 1 | 0 | 1 |
CAN (total) | 8 | 8 | 8 | 4 | 4 | 6 |
CAN FD capable | 4 | 4 | 4 | 0 | 0 | 2 |
CAN low-speed capable | 2 | 2 | 2 | 1 | 1 | 1 |
LIN | 2 | 2 | 2 | 1 | 1 | 1 |
EtherCAT (Slave) | 0 | 0 | 1 | 0 | 0 | 0 |
Analog in | 2 | 0 | 0 | 0 | 0 | 0 |
Digital in/out (A)(B) | 0 | 0 | 0 | 4 | 4 | 4 |
Digital in/out (A)(C) | 4 | 4 | 4 | 0 | 0 | 0 |
Ethernet 10/100 Base-T | 1 | 1 | 1 | 1 | 1 | 1 |
USB 2.0 device | 1 | 1 | 1 | 1 | 1 | 1 |
USB 2.0 host | 1 | 1 | 1 | 1 | 1 | 1 |
SDHC slot | 1 | 1 | 1 | 1 | 1 | 1 |
Protection class | IP42 | IP42 | IP42 | IP42 | IP42 | IP42 |
(A) Input or output per software switchable
(B) 4 digital inputs/outputs (5 V TTL)
(C) Digital inputs (max. 34 V), digital outputs (max. 34 V, 1 ampere)
Ixxat FRC-EP190 & FRC-EP170 – Feature Comparison
![FRC-EP170 Bundle (FR, CAN[4], LIN, DIO[4]) - with RTL: FR, GW, RBS](http://controltech.uk.com/cdn/shop/files/1-13-0142-01402-Ixxat-FRC-EP170.avif?v=1759403373&width=480)

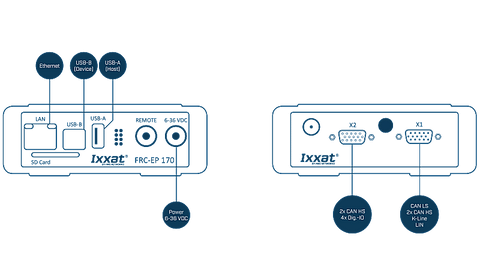

![FRC-EP170 Bundle (FR, CAN[4], LIN, DIO[4]) - with RTL: FR, GW, RBS](http://controltech.uk.com/cdn/shop/files/Interface-Overview-FRC-EP-170-1-13-0142-00002.png?v=1759403373&width=480)

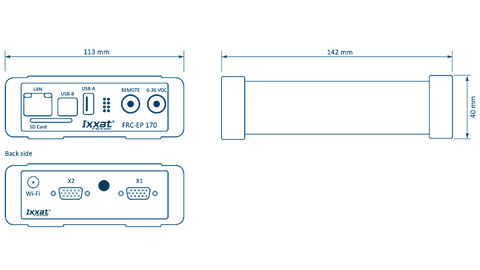

![FRC-EP170 Bundle (FR, CAN[4], LIN, DIO[4]) - with RTL: FR, GW, RBS](http://controltech.uk.com/cdn/shop/files/Product-Dimensions-1.13.0142.00002_FRC-EP170.png?v=1759403373&width=480)
The Ixxat FRC-EP170 is an advanced solution for automotive engineering that integrates multiple bus systems. It features four CAN channels, one of which is CAN low-speed capable, including FlexRay, LIN and Digital in/out functionalities. This makes it an ideal solution for logging, gateway, and residual bus simulation applications. Configuration is easily done with the Ixxat Advanced Configuration Tool (ACT).
