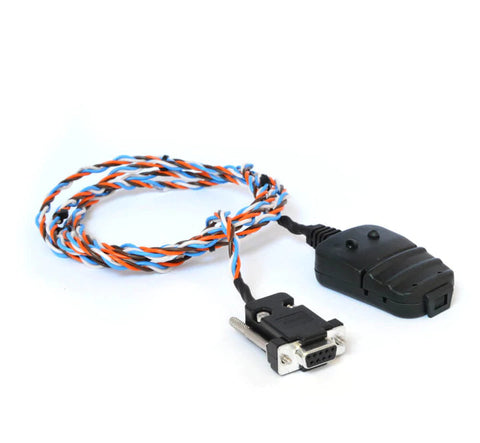

CANCrocodile - Contactless CAN Bus Reader
Regular price£123.20 Sale price Pricing excludes VAT.Shipping cost calculated in checkout.
Notice:
Some of our products are on varied lead times, For confirmation on when you can expect your order to arrive, please call in and speak to one of our experts.
Our team are available from 9:00am - 5:00pm on +44(0) 1234 247 176 and will be happy to discuss any questions.
GENERAL | |
---|---|
CH1 Adapter Cable Length | 15 cm (both cables) |
CH1 Adapter DC Connector | 5.5 mm (ID) x 2.1 mm (CPD) |
CANCrocodile Cable Length | 70 cm |
CANCrocodile Body | See drawing further below |
CH1/CH2 DB9 Adapter Pins | In accordance with CiA 303-1 |
Compatibility | High Speed CAN Bus (ISO 11898-2) incl. CAN FD, SAE J1939, OBD2, NMEA, CANopen |
CH1 Nominal Supply Voltage | 12/24 V |
CH2 Nominal Supply Voltage | 5 V (matching CANedge2 2nd port power out) |
CH1 Current Consumption | 30/15 mA |
LEDs | Red: Power on; Green: CAN bus data read |
Termination | The CANCrocodile is internally terminated (120 Ohm) |
Temperature | Operating temperature: -20degC to +80degC |
Weight (excl. CAN logger) | 100G |
IP Rating | IP30 |
CH1 Adapter pinout
DB9 (female) | Function | Molex | DC Connector |
1 | |||
2 | CAN-L | 4 | |
3 | GND | 2 | Outer |
4 | |||
5 | |||
6 | |||
7 | CAN-H | 3 | |
8 | |||
9 | VCC | 1 |
Center
|
CH2 Adapter pinout
DB9 (female) | Function |
1 | VCC |
2 | CAN-L |
3 | GND |
4 | |
5 | |
6 | |
7 | CAN-H |
8 | |
9 |
Do you need to log CAN bus data directly from the CAN L/H wiring harness?
Now you can - without cutting CAN wires!
The CANCrocodile contactless CAN reader parses the raw CAN data to your CAN logger via non-invasive electromagnetic fields - ensuring your warranty is kept.
We offer two options: The CH1 option includes a DB9-DC adapter, which lets you power your CAN logger and CANCrocodile via an external power supply (e.g. a vehicle battery or cigarette outlet). The CH2 option is designed for use with the 2nd port of the CANedge series.
