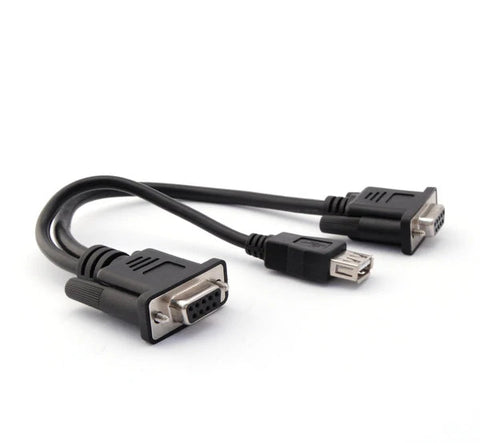

DB9-DB9/USB Adapter Cable

CT-CSS-0118

Regular price £33.00 Save Liquid error (product-template line 131): Computation results in '-Infinity'%
/
Shipping calculated at checkout.

Only 0 items in stock!
Our products are on varied lead times, please call if you would like confirmation of when your product will arrive.

Need to log 2 x CAN/LIN data - while powering a 3G/4G USB WiFi router?

With this adapter, your CANedge2 can power a 3G/4G USB WiFi router via the 2nd port - simplifying field deployments.

At the same time, the DB9 female connector makes it easy to connect a CANmod sensor module - e.g. a CANmod.gps.

You can also use this to easily log 2 x CAN/LIN channels while powering a USB hotspot.

GENERAL
Power supply The CANedge2 provides a configurable fixed 5V supply output
Adapter Cable Length 20 cm per split cable (incl. connector heads)
Cable Thickness 22 AWG (0.50 mm2)
Connectors 9-pin D-sub (DB9) female to 9-pin D-sub (DB9) female and USB A female
Temperature Operating temperature: -20degC to +80degC
Weight 60G



Adapter pinout


DB9
(female 1)
Function DB9
(female 2)
USB A
(female)
1 VCC (Power) 1 USB pin 1
2 CAN-L 2
3 GND 3 USB pin 4
4 4 N/C
5 N/C N/C
6 GND (optional) 6 USB pin 4
7 CAN-H 7 N/C
8 N/C N/C
9 9 N/C
