CANnector S (CAN[4], FD[2], LIN[2], DIO[2])
by Ixxat
Regular price£1,500.00 Sale price Pricing excludes VAT.Shipping cost calculated in checkout.
Rating: 5.0 out of 5.0 5 / 5Notice:
Some of our products are on varied lead times, For confirmation on when you can expect your order to arrive, please call in and speak to one of our experts.
Our team are available from 9:00am - 5:00pm on +44(0) 1234 247 176 and will be happy to discuss any questions.
Identification & Status
Ixxat CANnector Specifications
General Identification | |
---|---|
Brand | Ixxat |
Country of Origin | Germany |
Item Number | 1.01.0091.00000 |
Dual Usage | No |
ECCN | EAR99 |
HS Code | 8517620000 |
General
Device Specifications
Device Characteristics | |
---|---|
Content of Delivery | CANnector device, manual, adhesive device feet, power supply connector, USB cable (2 m), Ethernet cable (2 m), ACT software download |

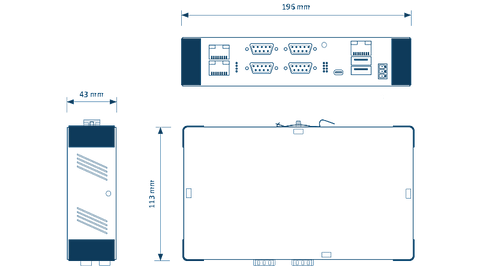

Net Dimensions (mm) | 113 (W) x 196 (H) x 43 (D) |
Net Weight | 1150 g |
Packed Weight | 1150 g |
Mounting | DIN rail mount (bracket included) |
Current Consumption | 420 mA (12 V DC) |
Input Voltage | 6–36 V DC |
Power Connector | 3-pole |
Isolation | Four galvanically isolated interface islands (up to 2 kV DC) |
Isolation Voltage | 2 kV DC for 1 sec. |
Operating Temperature | -40 °C to +80 °C |
Storage Temperature | -40 °C to +85 °C |
Relative Humidity | 10–95 % (non-condensing) |
Housing Materials | Aluminium, Steel |
Packaging Material | Cardboard |
Warranty | 1 year |
Configuration | Linux-based platform, configured via ACT software & USB |
CAN Features
CAN | |
---|---|
Mode | High-speed CAN 2.0A/B on CAN1–CAN6 |
Baud Rate | 10 – 1000 Kbit/s |
Transceiver | TI SN65HVD251 |
CAN FD Features
CAN FD | |
---|---|
Mode | CAN FD according ISO 11898-1 on CAN5–CAN6 |
Baud Rate | 1 – 5 Mbit/s |
Transceiver | MCP2562FD |
Certifications & Standards
Compliance | |
---|---|
CE | Yes |
WEEE Category | IT & Telecommunications equipment |
ETIM Classification | EC001604 |
Protection Class IP | IP40 |
LIN Features
LIN | |
---|---|
Mode | LIN Master and LIN Slave |
Transceiver | MCP2003B-E/MC |
Baud Rate | 2.4 – 19.2 Kbit/s |
Ixxat CANnector – Industrial Communication Device
Physical Features
Ixxat CANnector Specifications
Device Physical Characteristics | |
---|---|
Contains Battery | No |
Connectors / I/O |
|
Ixxat CANnector – Industrial Communication Device
![CANnector S (CAN[4], FD[2], LIN[2], DIO[2])](http://controltech.uk.com/cdn/shop/files/1-01-0091-01000-Ixxat-CANnector_dd2a6d2e-7451-4f28-8447-8f147225f78e.avif?v=1759333988&width=480)
![CANnector S (CAN[4], FD[2], LIN[2], DIO[2])](http://controltech.uk.com/cdn/shop/files/Interface-Overview-CANnector-1-01-0091-00000.png?v=1759333988&width=480)
![CANnector S (CAN[4], FD[2], LIN[2], DIO[2])](http://controltech.uk.com/cdn/shop/files/Product-Dimensions-1.01.0091.01000_CANnector_bed5e5e0-429e-4bd5-8a11-fd4aede7ca76.png?v=1759333988&width=480)
The Ixxat CANnector S is a powerful platform for automotive engineering and testing applications, integrating multiple bus systems for efficient logging and gateway operations. It features two LIN, two Digital in/out and six CAN channels, two of which are CAN FD capable. Configuration is easily done with the Ixxat Advanced Configuration Tool (ACT).
Features and benefits
Go-to solution for demanding network requirements
Enables easy integration of multiple bus systems into a single, DIN rail mountable device. This is essential for e-mobility projects and complex industrial applications.
Extensive CAN connectivity
The CANnector S features six CAN channels, two of which are CAN FD capable, catering extensive connectivity for a wide range of automotive applications.
Multi-connectivity with various interfaces
Additional interfaces included: 2 x LIN, 1 x Ethernet (10/100 Base-T), 2 x Digital in/out (A/E), 1 x USB 2.0 device and 2 x USB 2.0 host.
Improved data management for efficient engineering
Streamlines data management and protocol handling, optimized for automotive testing, logging and gateway operations. Ensuring easy integration and reliable performance.
Embedded platform with own processing power
All applications run on the device, a PC is only needed for configuration or stimulation/visualization of data, as the actual intelligence is outsourced to the embedded platform.
Overvoltage protection
Galvanic isolation up to 2 kV safeguards against overvoltage and protects from potential electrical damage.
Quick and easy configuration through ACT support
The CANnector series is supported by the Ixxat ACT (Advanced Configuration Tool), a Windows-based tool to easily configure the device via drag and drop. Most use cases can be solved by using ACT Freeware.
