PCAN-USB FD
Regular price£267.50 Sale price Pricing excludes VAT.Shipping cost calculated in checkout.
Control Technologies is the official and exclusive PEAK-System reseller in the UK.
Our engineering team has over 20 years of experience with CAN technologies and protocols - so you’re in safe hands.
- Fast UK shipping
- 100% genuine PEAK hardware with full warranty
- Direct access to our engineers for integration advice
View the official PEAK-System distributors list .
Have any questions?
If you’re unsure which product is right for your project, our engineering team is here to help.
Use the chat bubble below, or call us on +44 (0) 1234 247176 — we’ll guide you to the right choice for your application.
Please note: Some products have varied lead times. For exact delivery timeframes, please call in to speak with one of our team.

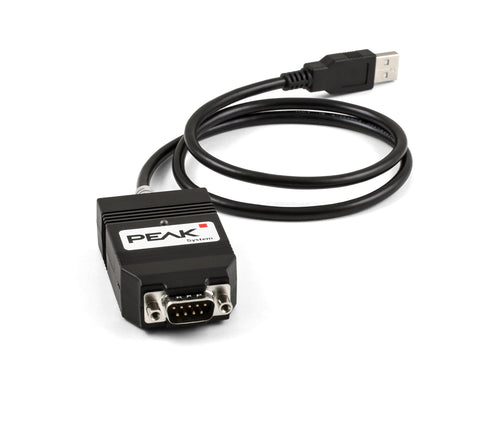

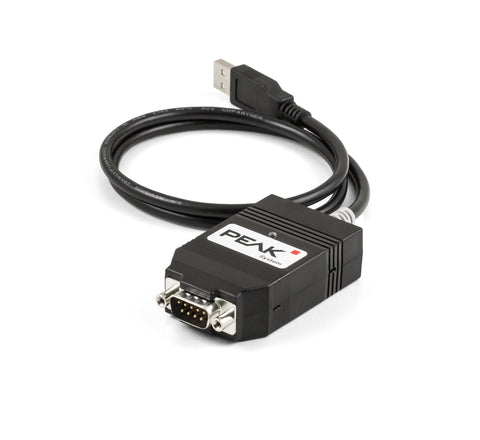

PCAN-USB FD: CAN and CAN FD Interface for High-Speed USB 2.0
PCAN-USB FD Adaptor isolated Version incl. Driver/Softw. Linux/Windows 7/8.1/10 (32/64Bit)
The CAN FD adapter PCAN-USB FD allows the connection of CAN FD and CAN networks to a computer via USB. A galvanic isolation of up to 500 Volts decouples the PC from the CAN bus. The simple handling and its compact plastic casing make the adapter suitable for mobile applications.
The new CAN FD standard (CAN with Flexible Data rate) is primarily characterized by higher bandwidth for data transfer. The maximum of 64 data bytes per CAN FD frame (instead of 8 so far) can be transmitted with bit rates up to 12 Mbit/s. CAN FD is downward-compatible to the CAN 2.0 A/B standard, thus CAN FD nodes can be used in existing CAN networks. However, in this case the CAN FD extensions are not applicable.
The monitor software PCAN-View and the programming interface PCAN-Basic for the development of applications with CAN connection are included in the scope of supply and support the new standard CAN FD.
ISO / Non-ISO CAN FD: Since the first implementations of CAN FD, the protocol has been improved and is now included in the standard ISO 11898-1. The revised CAN FD standard is not compatible with the original protocol.
PEAK-System takes this into account by supporting both protocol versions with their CAN FD interfaces. If required, the user can switch to the CAN FD protocol used in the environment by software („Non-ISO“ and „ISO“). Devices delivered until February 2015 need a firmware update for this functionality. If you are interested and for further information, please contact info@peak-system.com.
