PCAN-PCI/104-Express
Regular price£269.50 Sale price Pricing excludes VAT.Shipping cost calculated in checkout.
Control Technologies is the official and exclusive PEAK-System reseller in the UK.
Our engineering team has over 20 years of experience with CAN technologies and protocols - so you’re in safe hands.
- Fast UK shipping
- 100% genuine PEAK hardware with full warranty
- Direct access to our engineers for integration advice
View the official PEAK-System distributors list .
Have any questions?
If you’re unsure which product is right for your project, our engineering team is here to help.
Use the chat bubble below, or call us on +44 (0) 1234 247176 — we’ll guide you to the right choice for your application.
Please note: Some products have varied lead times. For exact delivery timeframes, please call in to speak with one of our team.

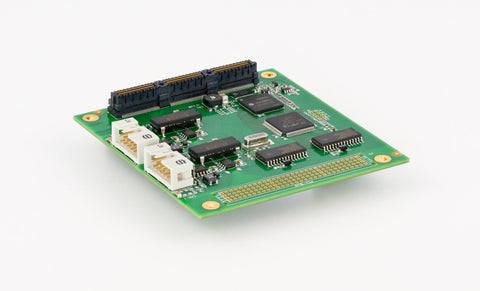

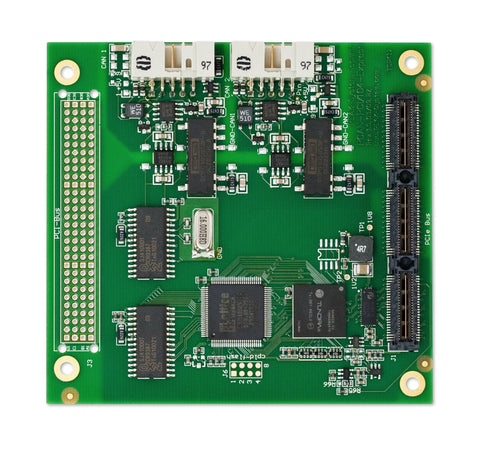

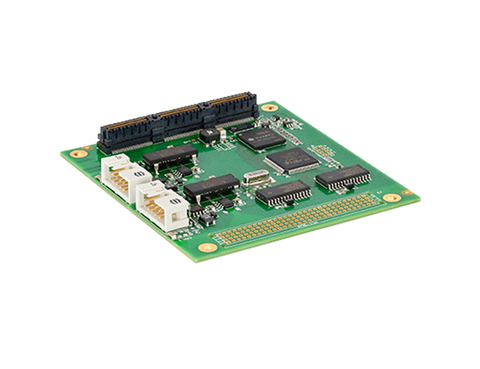

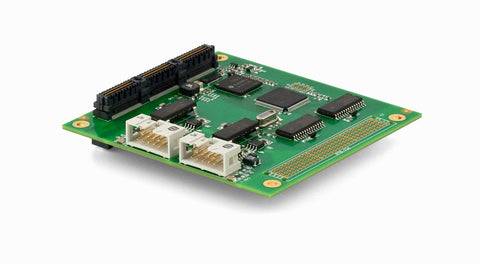

The PCAN-PCI/104-Express card enables the connection of one or two CAN busses to a PCI/104-Express system. Up to four cards can be stacked together. The CAN bus is connected using a 9-pin D-Sub plug on the slot brackets supplied. There is galvanic isolation of up to 500 Volts between the computer and CAN sides. There are versions with one, two and four channels.
The package is also supplied with the CAN monitor PCAN-View for Windows® and the programming interface PCAN-Basic.
Scope of Supply
- PCAN-PCI/104-Express card
- Slot bracket with D-Sub connector(s) for the CAN bus (two for the four-channel version)
- Device drivers for Windows® 10, 8.1 and Linux (32/64-bit)
- CAN monitor PCAN-View for Windows® Details ...
- Programming interface PCAN-Basic for developing applications with CAN connection Details ...
- Programming interfaces for standardized protocols from the automotive sector
- Manual in PDF format
