PCAN-MicroMod FD Digital
Regular price£418.00 Sale price Pricing excludes VAT.Shipping cost calculated in checkout.
Control Technologies is the official and exclusive PEAK-System reseller in the UK.
Our engineering team has over 20 years of experience with CAN technologies and protocols - so you’re in safe hands.
- Fast UK shipping
- 100% genuine PEAK hardware with full warranty
- Direct access to our engineers for integration advice
View the official PEAK-System distributors list .
Have any questions?
If you’re unsure which product is right for your project, our engineering team is here to help.
Use the chat bubble below, or call us on +44 (0) 1234 247176 — we’ll guide you to the right choice for your application.
Please note: Some products have varied lead times. For exact delivery timeframes, please call in to speak with one of our team.

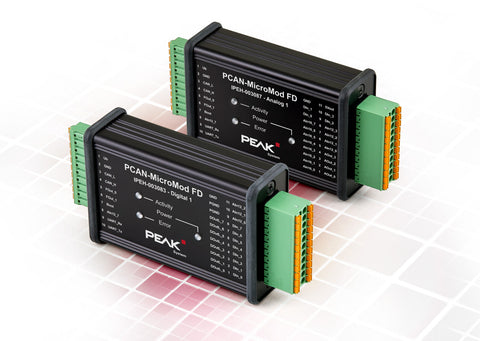

The PCAN-MicroMod FD plug-in board can be purchased together with ready-to-use motherboards that provide peripherals for specific requirements. The unit uses spring terminal connectors to connect CAN, I/O, and power supply. The MicroMod FD digital boards offer 2 variants of output, low side or high side.
Explore our I/O modules.
We provide a simple Windows-based configuration tool allows end users to configure the PCAN-MicroMod FD. In addition to simple I/O mapping to CAN IDs, function blocks are also available for further data and logical functional processing capabilities. Once you have created your configuration, it is transferred to the device via CAN and allows the unit to run as a standalone CAN node. The configuration tool also allows multiple nodes to be configured independently on the same bus.
All PCAN-MicroMod FD products can alternatively be operated with CANopen firmware. Licenses for the CANopen firmware are available from our partner Embedded Systems Academy (please contact us for more details)
Requirements:
The configuration requires a PEAK CAN interface.
