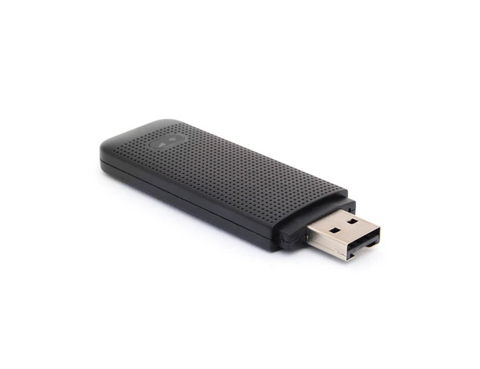

Name: 3G/4G USB WiFi Router
Brand: CSS Electronics
SKU: CT-CSS-0087
Price: 82.5 GBP
Availability: InStock

SKU: CT-CSS-0087

Select Model

USA

Europe

Notice:

If you aim to use this in USA/CA, see our comment on SIM providers.

Specification

Share

This hotspot can be used as a mobile WiFi access point for the CANedge2, enabling the device to upload data while on-the-road.

For plug & play installation, you can also power the hotspot via the CANedge2.

The hotspot is unlocked: Simply insert a compatible nano SIM and configure your CANedge2 to connect to the hotspot.

Specification

You can always call our friendly team on 01234 247176

Need technical support? Click here to email us.

If you need a unique solution and written quote, click here.

WIFI
Frequency Scope (US/CA Config)	FDD-LTE: B2/B4/B5/B7, UMTS: B2/B4
Frequency Scope (EU Config)	FDD-LTE: B1/B3/B7/B8/B20, UMTS: B1/B8
No. of WiFi Connections	10
WiFi Security Mode	Open, WPA-PSK, WPA2-PSK
Data Rate	FDD-LTE: UL 50M / DL 100Mbps TDD-LTE: UL 17M / DL 68Mbps DC-HSPA+: UL 5.76M / DL 42Mbps HSPA+: UL 5.76Mbps / DL 14.4Mbps HSPA: UL 5.76Mbps / DL 7.2Mbps UMTS: UL / DL 384Kbps
WiFi Frequency	2412MHz-2472MHz
Network Type	FDD-LTE, TDD-LTE, DC-HSPA+,HSPA+, HSPA,UMTS
GENERAL
Size	8.2 x 2.6 x 0.8 cm
Weight	16 g
Form	USB stick
Color	The color may vary (black or white)
Installation	Plug & play - no CD/installation required
SIM card	Nano SIM card (as in most smartphones)
Antenna	Built-in 3G/4G & WIFI antenna
WIFI Antenna Gain	-1 dbi (3G/4G: -1.5 dbi)
Power	Powered via USB - e.g. in your vehicle
Voltage	5V
Power Consumption	<3W
Working temperature	-10 to 45 degC (storage: -20 to 75 degC)
Certifications	CE/RoHS

WIFI
Frequency Scope (US/CA Config)	FDD-LTE: B2/B4/B5/B7, UMTS: B2/B4
Frequency Scope (EU Config)	FDD-LTE: B1/B3/B7/B8/B20, UMTS: B1/B8
No. of WiFi Connections	10
WiFi Security Mode	Open, WPA-PSK, WPA2-PSK
Data Rate	FDD-LTE: UL 50M / DL 100Mbps TDD-LTE: UL 17M / DL 68Mbps DC-HSPA+: UL 5.76M / DL 42Mbps HSPA+: UL 5.76Mbps / DL 14.4Mbps HSPA: UL 5.76Mbps / DL 7.2Mbps UMTS: UL / DL 384Kbps
WiFi Frequency	2412MHz-2472MHz
Network Type	FDD-LTE, TDD-LTE, DC-HSPA+,HSPA+, HSPA,UMTS
GENERAL
Size	8.2 x 2.6 x 0.8 cm
Weight	16 g
Form	USB stick
Color	The color may vary (black or white)
Installation	Plug & play - no CD/installation required
SIM card	Nano SIM card (as in most smartphones)
Antenna	Built-in 3G/4G & WIFI antenna
WIFI Antenna Gain	-1 dbi (3G/4G: -1.5 dbi)
Power	Powered via USB - e.g. in your vehicle
Voltage	5V
Power Consumption	<3W
Working temperature	-10 to 45 degC (storage: -20 to 75 degC)
Certifications	CE/RoHS
